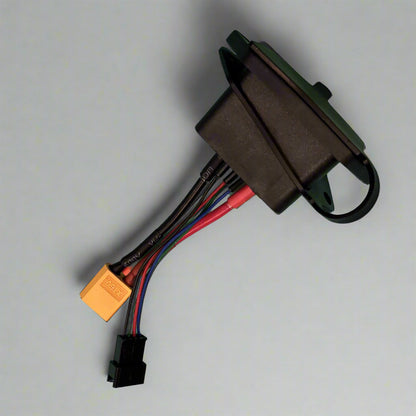

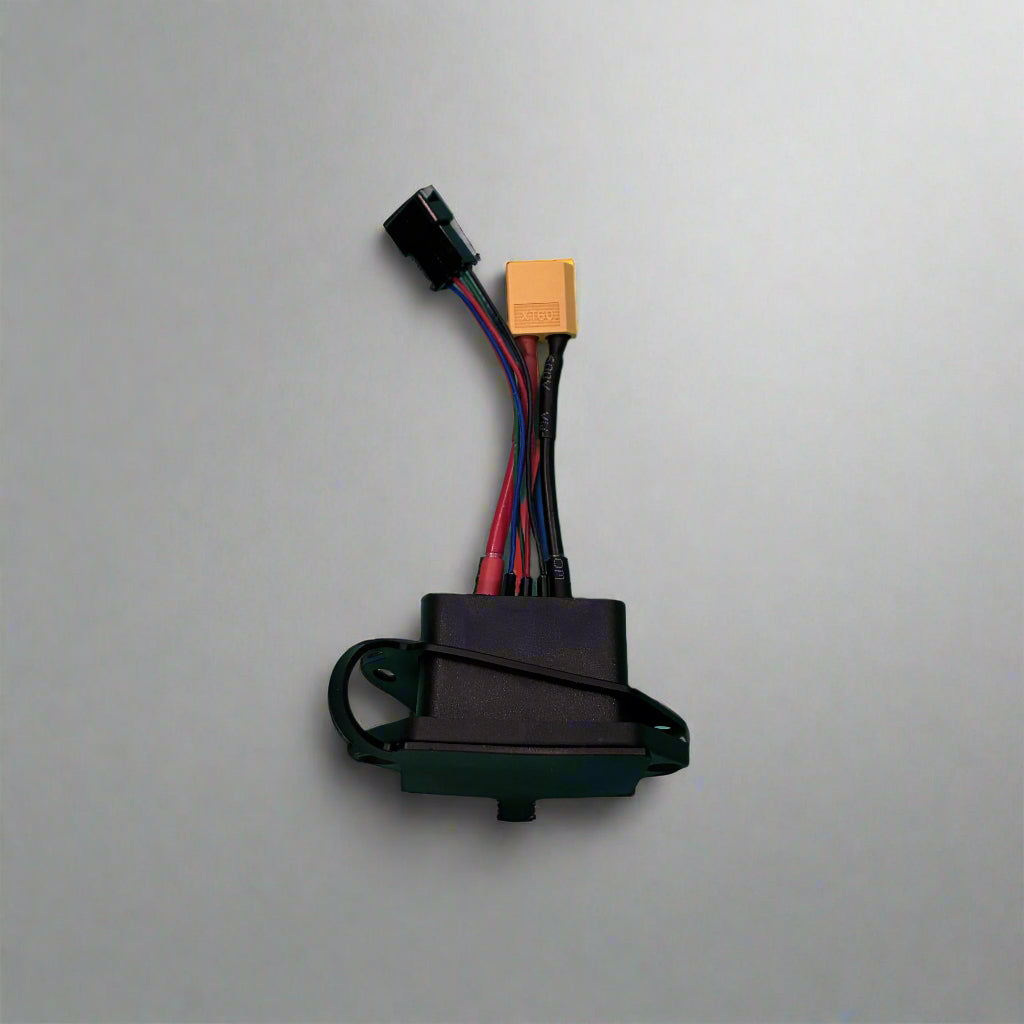

This is the OEM-Spec Vehicle Charging Inlet (Female Socket) designed exclusively for Revolt Electric Motorcycles. Featuring the specialized Revolt 2+4 circular interface, it is the direct replacement for the tank/body-mounted port on RV400, RV400 BRZ, RV BlazeX, and RV1/RV1+. Engineered for High-Voltage (72V/84V) systems, this CAN-enabled socket ensures a safe, arc-free connection and reliable BMS data communication.
Detailed B2B Specifications
Product Overview
Revolt motorcycles operate at a higher voltage (72V Nominal / 84V Peak) than typical electric scooters, making the charging socket a critical safety component. This premium replacement unit is built with High-Dielectric insulation to prevent arcing and thermal breakdown. It comes pre-wired with a complete 6-wire harness, ensuring full compatibility with the motorcycle's "Smart BMS" for error-free charging handshakes.
Resale & Service Advantages
- Full Fleet Coverage: One SKU fits the entire Revolt product line, from the premium RV400 to the entry-level RV1, simplifying your inventory.
- High-Voltage Safety: Manufactured with industrial-grade PBT/Nylon housing rated for 100V+ DC, providing a safety margin against the 84V peak charging voltage.
- Service-Ready Assembly: Includes pre-soldered, color-coded wires (Power + Data), allowing technicians to splice into the main harness quickly without special crimping tools.
- Durable Locking Mechanism: Features the OEM-style twist-lock bayonet mount to keep the charger plug secure during charging, preventing loose connections.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |
| Component Type | Vehicle Inlet / Socket | Female Body-Mount Port (Tank/Frame location). |

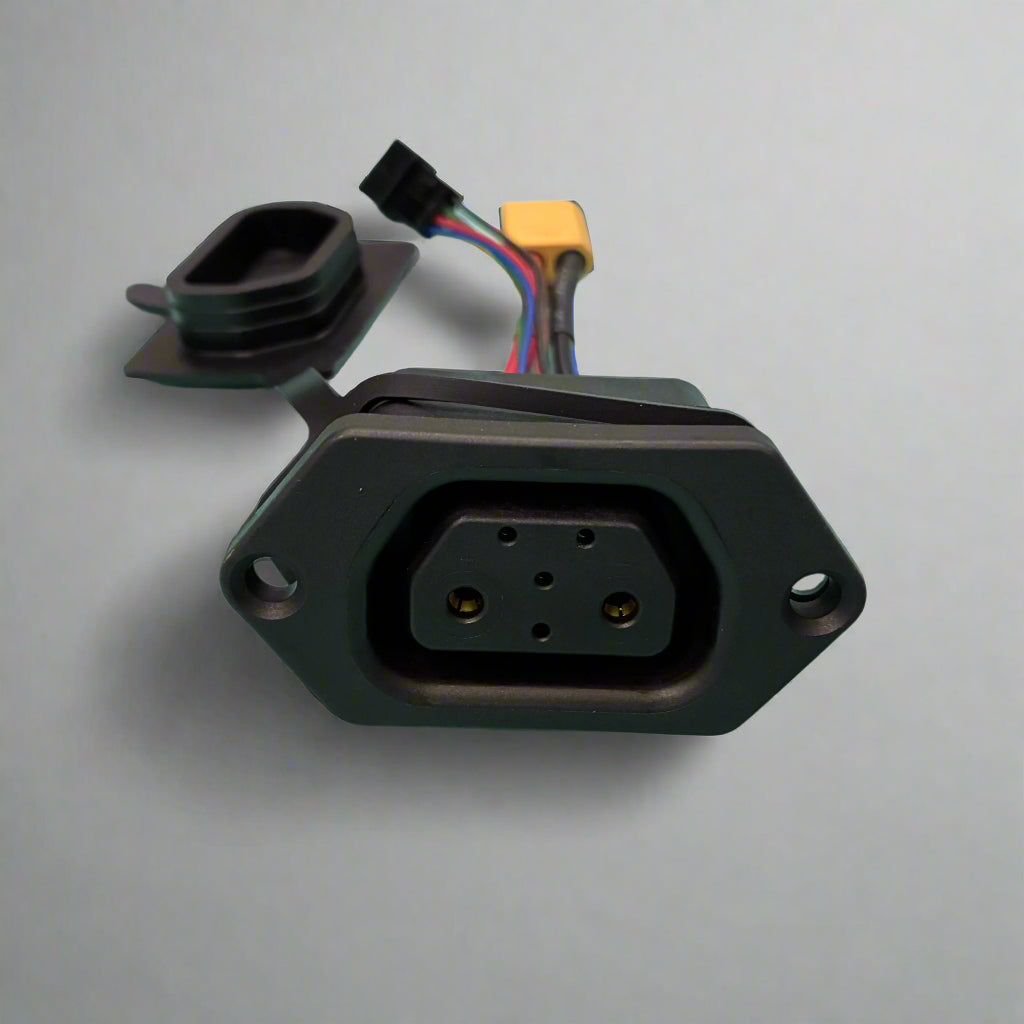

| Connector Interface | Revolt 2+4 Female | Circular Chogori-style housing with secure locking slots. |
| Wire Configuration | 6 Wires (Full CAN) | 2x Power (High-Voltage) + 4x Signal (Data/Pilot). |
| Voltage Rating | High-Voltage (100V DC) | Critical for safety on Revolt's 72V architecture. |
| Current Rating | High-Current (15A-30A) | Handles standard and fast-charging loads without melting. |
| Mounting | 3-Hole Flange | Direct bolt-on fit for OEM tank covers. |
Platform Compatibility
Direct Fitment for All Revolt Electric Motorcycles:
- Revolt RV400 (Premium & Standard)
- Revolt RV400 BRZ
- Revolt RV BlazeX
- Revolt RV1 / RV1+
- Note: Fits all model years equipped with the 6-pin CAN interface.
Functional Wiring Architecture (6-Wire)
This socket manages the complex high-voltage charging process:
| Wire Function | Critical Purpose | Quality Difference |
| Power Pins (2x Large) | HV Energy Transfer | Thick insulation prevents voltage leakage; heavy contacts minimize heat. |
| CAN Data Pins (2x) | BMS Communication | Transmits battery temperature and voltage data to the charger. |
| Wake/Pilot Pins (2x) | System Interlock | Activates the bike's charging relay only when the plug is fully seated. |
Professional Note:
Safety Warning: Unlike 48V scooters, Revolt bikes use a 72V system. Using a generic or low-quality socket can lead to dangerous arcing or ECU damage. This socket is specifically rated for High-Voltage DC applications.
