Charging Socket - D-Type 2 +4 with 2 wires (Female) (Non-CAN)
Charging Socket - D-Type 2 +4 with 2 wires (Female) (Non-CAN)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp
This is a Premium-Grade Vehicle Charging Inlet (Female Socket) featuring the legacy D-Type 2+4 configuration. It is the specific replacement part for Okinawa (Praise Pro/iPraise+ Pre-2022) and other older generic electric scooters. Unlike low-quality "China-Import" sockets that deform under heat, this unit is manufactured with heavy-duty industrial polymers and up-gauged wiring to handle high-current charging safely. It is a vital stock item for servicing the massive fleet of out-of-warranty scooters on Indian roads.
Detailed B2B Specifications
Product Overview
The charging socket is the #1 failure point on older electric scooters. Standard replacement parts often use cheap, soft plastic that melts when the charging current heats up the terminals. This Heavy-Duty Edition solves that problem. It is engineered with high-thermal-resistance materials and pure copper terminals to ensure a tight, cool connection every time. It comes pre-wired with a 2-core pigtail for immediate installation.
Resale & Service Advantages
- Beat the "Melting" Issue: The primary complaint with generic D-Type sockets is melting. This premium version uses High-Temp ABS/PBT housing that withstands the heat generated during 4-6 hour charging cycles, reducing warranty claims for your shop.
- Legacy Fleet Best-Seller: Thousands of pre-2022 Okinawa scooters need this specific part.2 It is a high-volume consumable that guarantees repeat business from customers with older bikes.
- Better than Stock: Features thicker internal contact springs than the original factory parts, ensuring the charger plug snaps in securely and doesn't spark due to looseness.

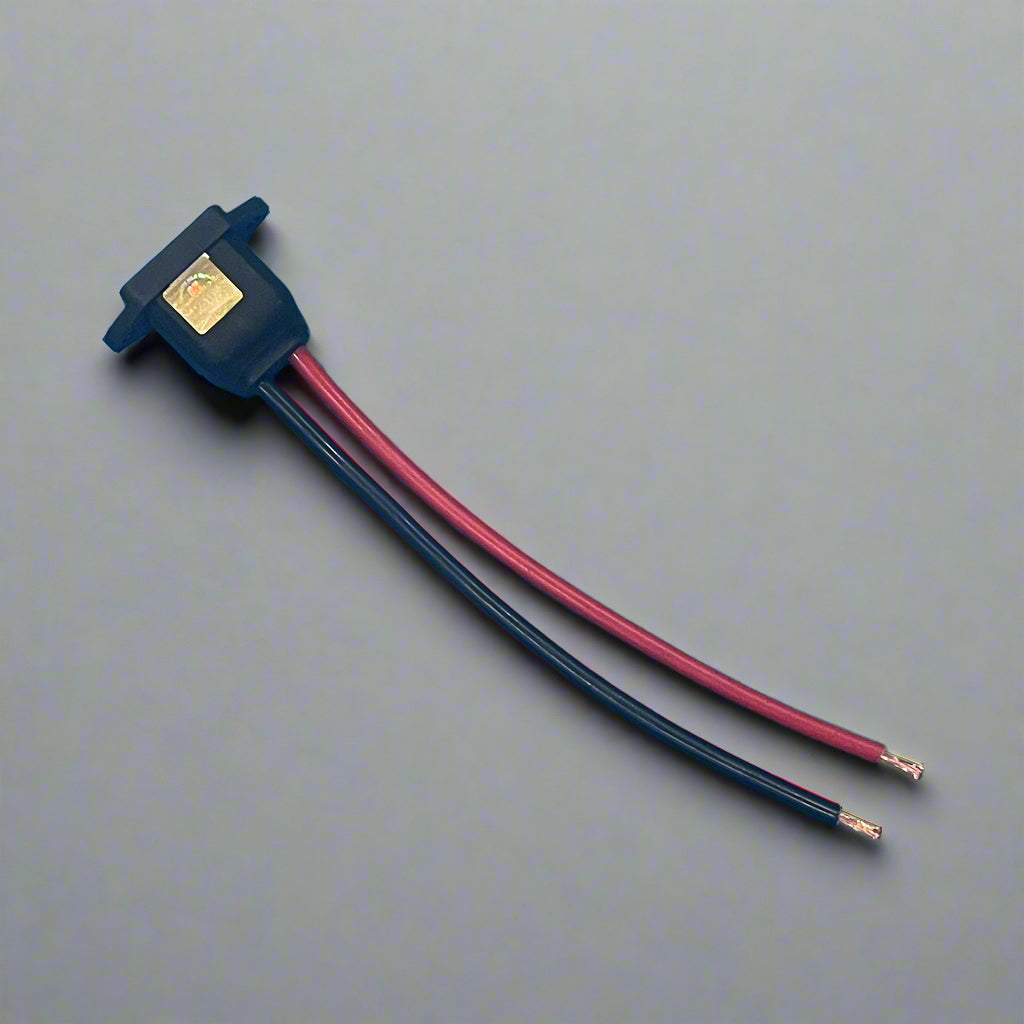

- Simplified Repair: Pre-soldered with 2 active wires (Red/Black), ready to splice into the scooter's main harness. No complex data wiring or crimping required.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |
| Component Type | Vehicle Inlet / Socket | Female Panel-Mount Port (Installed on Scooter Body). |
| Connector Interface | D-Type 2+4 Female | Distinct "D" shape housing (Not Round). Fits legacy plugs. |
| Wire Configuration | 2 Wires (Non-CAN) | 2x Power (Red + / Black -). No Data/Signal lines. |
| Material Quality | Premium High-Temp | Industrial Polymer resists melting better than cheap imports. |
| Current Rating | High-Current (20A) | Heavy copper contacts handle fast charging loads safely. |
| Mounting | Standard Flange | Direct bolt-on fit for OEM body panels. |
Platform Compatibility
Direct Fitment for Legacy (Non-CAN) Models:
- Okinawa: Praise Pro, iPraise+, Ridge, R30 (Models purchased before 2022).
- Generic / Imported: Various unbranded e-scooters and e-loaders utilizing the D-Type interface.
- Note: Not compatible with 2023+ models using round Chagori connectors.
Functional Wiring Architecture (2-Wire Logic)
This socket is designed for pure analog power transfer:
| Wire Function | Critical Purpose | Quality Difference |
| Power Pins (2x Large) | DC Current Intake | Pure Copper Contacts (vs. Brass/Steel in cheap units) ensure maximum conductivity and minimum heat. |
| Signal Slots (4x) | Inactive / Empty | The housing has holes for 4 small pins, but they are empty. This is normal for Non-CAN scooters. |
Professional Note:
Identification Tip: Always check the shape! If the customer's port is D-Shaped (flat on one side) and has 2 large pins inside, this is the correct part.
Upsell Opportunity: When a customer comes in with a melted charging port, explain that cheap plastic sockets caused the failure. Sell them this "Premium High-Temp" socket as a permanent fix that won't melt again.
