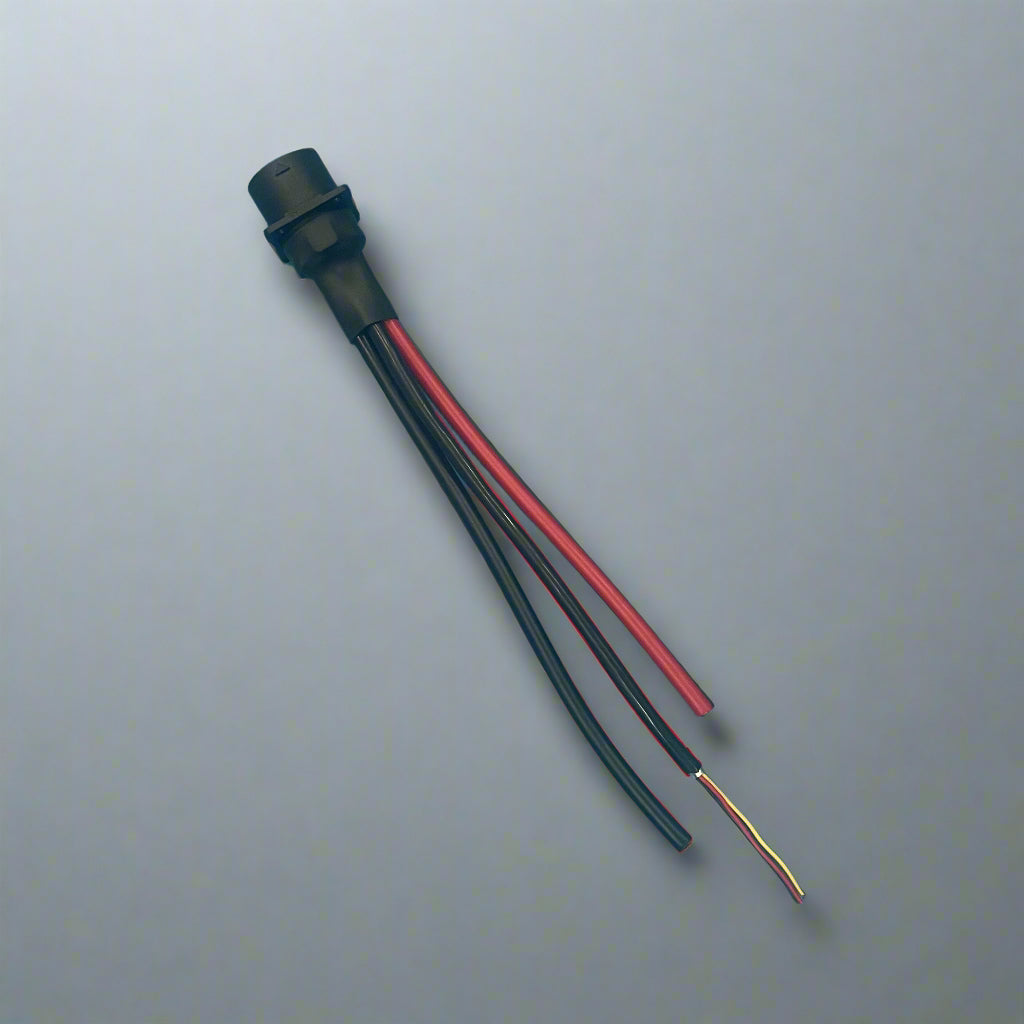

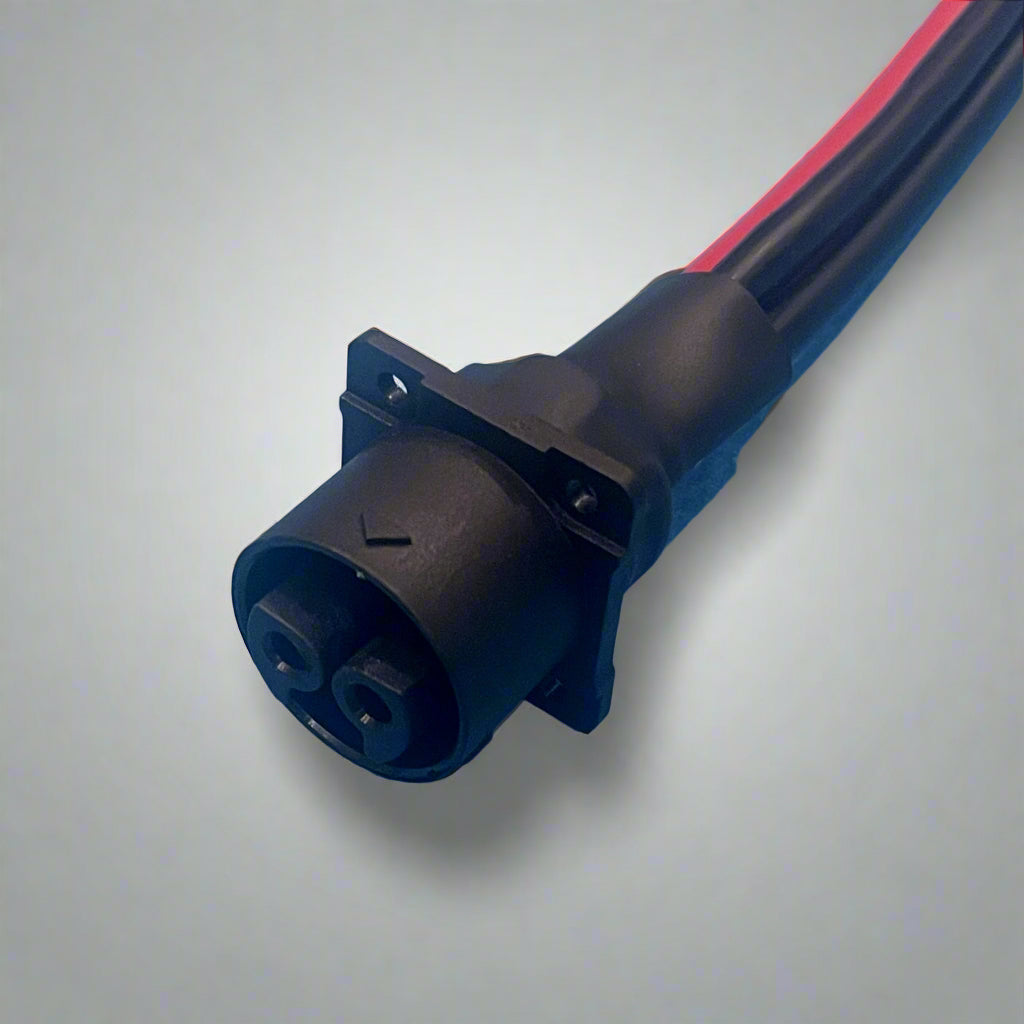

Charging Socket - Chagori 2 + 4 with 6 wires (Female) (CAN) (Type 2)

Charging Socket - Chagori 2 + 4 with 6 wires (Female) (CAN) (Type 2)

Rs. 1,060.00
Rs. 1,060.00
Sale Sold out
Shipping calculated at checkout.
Need Help to Place the Order?
WhatsApp Connect on WhatsApp

This is a Premium-Grade Vehicle Charging Inlet (Female Socket) featuring the Chagori 2+4 configuration. It is specifically engineered for Okinawa (Praise Pro/iPraise+ 2022+) and BGauss (C12i) electric scooters that utilize CAN-bus communication. Manufactured with high-thermal grade polymers, this socket is the ultimate solution for preventing the common "melted port" failure, offering superior heat resistance and current handling compared to standard stock parts.

Detailed B2B Specifications

Product Overview

A critical inventory item for EV service centers, this charging socket serves as the direct replacement for the vehicle-side charging port on major high-speed scooter platforms. Unlike generic replacements that may suffer from pin misalignment or low-grade plastic housing, this OEM-Spec unit ensures a precise mechanical fit and a reliable digital handshake with the BMS. It comes pre-wired with a 6-core loom for a hassle-free install.

Resale & Service Advantages

  • Solved "Melting" Issue: Constructed from industrial High-Temp Polymer, specifically chosen to resist deformation during high-amperage charging sessions - a major upgrade over standard ABS sockets.

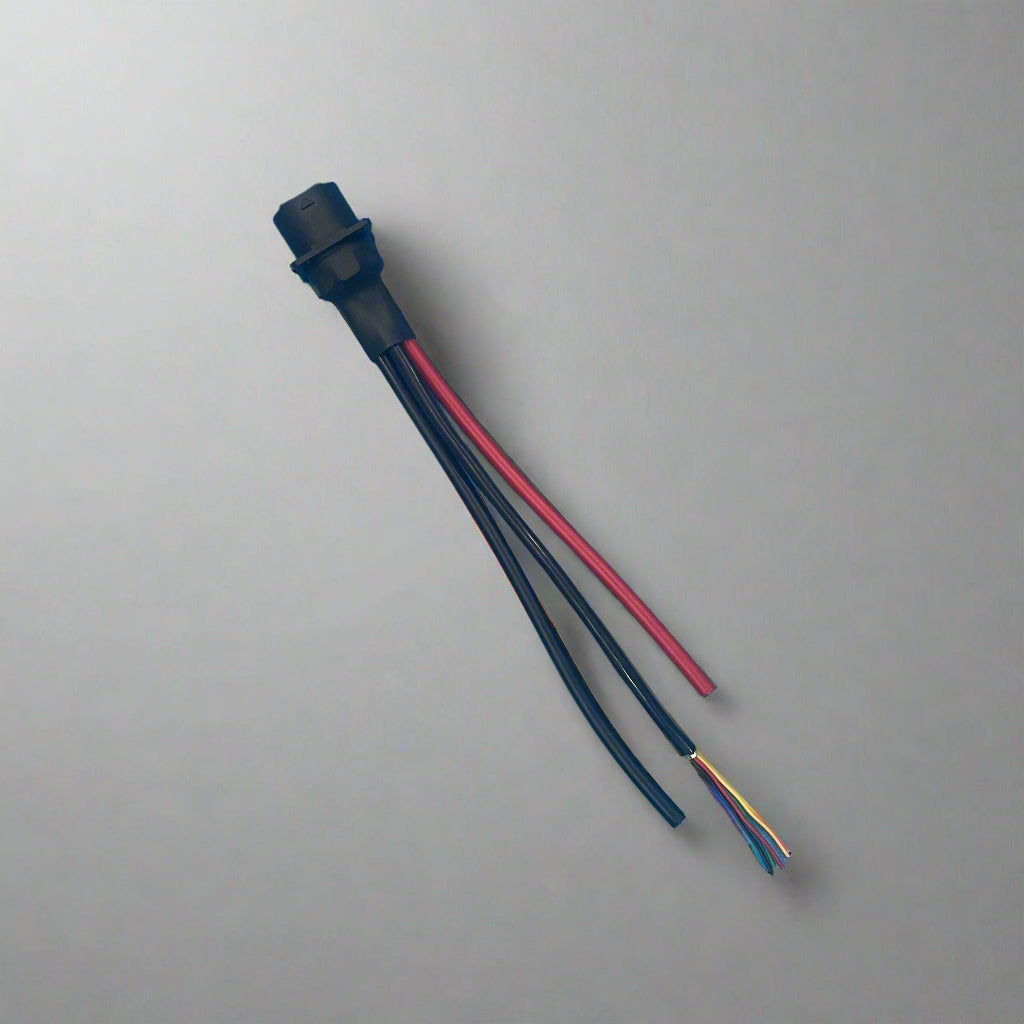

  • Service-Ready Assembly: Includes a generous pigtail length with pre-stripped/tinned wires, allowing technicians to solder directly into the main harness without crimping new pins.
  • Heavy-Duty Contacts: The 2 main power pins feature reinforced copper alloy contacts to maintain low resistance and prevent arcing.

Technical Specifications (Key Data)

Specification Detail Installer Benefit
Component Type Vehicle Inlet / Socket Female Panel-Mount Port (Installed on Scooter Body).
Connector Interface Chagori 2+4 Female Precision moulded to mate with standard Chagori Male chargers.
Wire Configuration 6 Wires (Full CAN) 2x Power (Heavy Gauge) + 4x Signal (Data).
Protocol CAN-Bus Enabled Wired for Smart BMS communication (Okinawa/BGauss Logic).
Current Rating High-Current (25A+) Robust enough for fast charging without overheating.
Mounting Standard Flange Direct bolt-on replacement for factory panels.



Platform Compatibility

Direct Fitment for CAN-Enabled Models:

  • Okinawa: Praise Pro, iPraise+ (2022/2023 Models Onwards).
  • BGauss: C12i, C12i Max, C12i EX.4
  • Note: Not compatible with older "D-Type" non-CAN models.

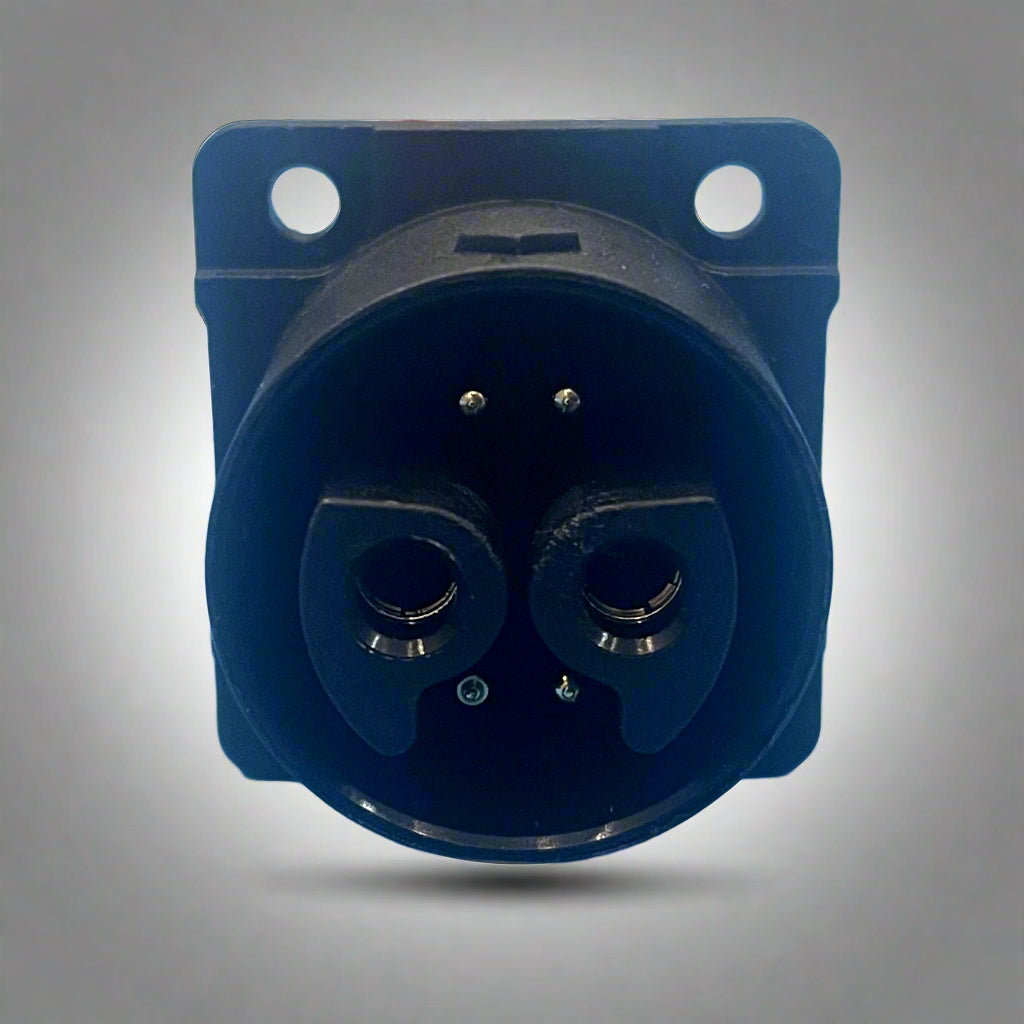

Functional Wiring Architecture (6-Wire)

This socket manages the critical input from the charger to the vehicle's battery:

Wire Function Critical Purpose Quality Difference
Power Pins (2x Large) High-Current Intake Up-gauged copper minimizes heat buildup at the connection point.
CAN Data Pins (2x) BMS Data Link Ensures the scooter correctly reports SoC% and stops charging when full.
Wake/Pilot Pins (2x) Safety Interlock Detects charger connection to immobilize the vehicle while plugged in.



Professional Note:

Installation Advisory: While this socket physically resembles those used on Ampere scooters, but this model is specific to Okinawa and BGauss.

Selling Tip: Promote this as a "Heat-Resistant Upgrade" for customers replacing a burnt or damaged charging port.
