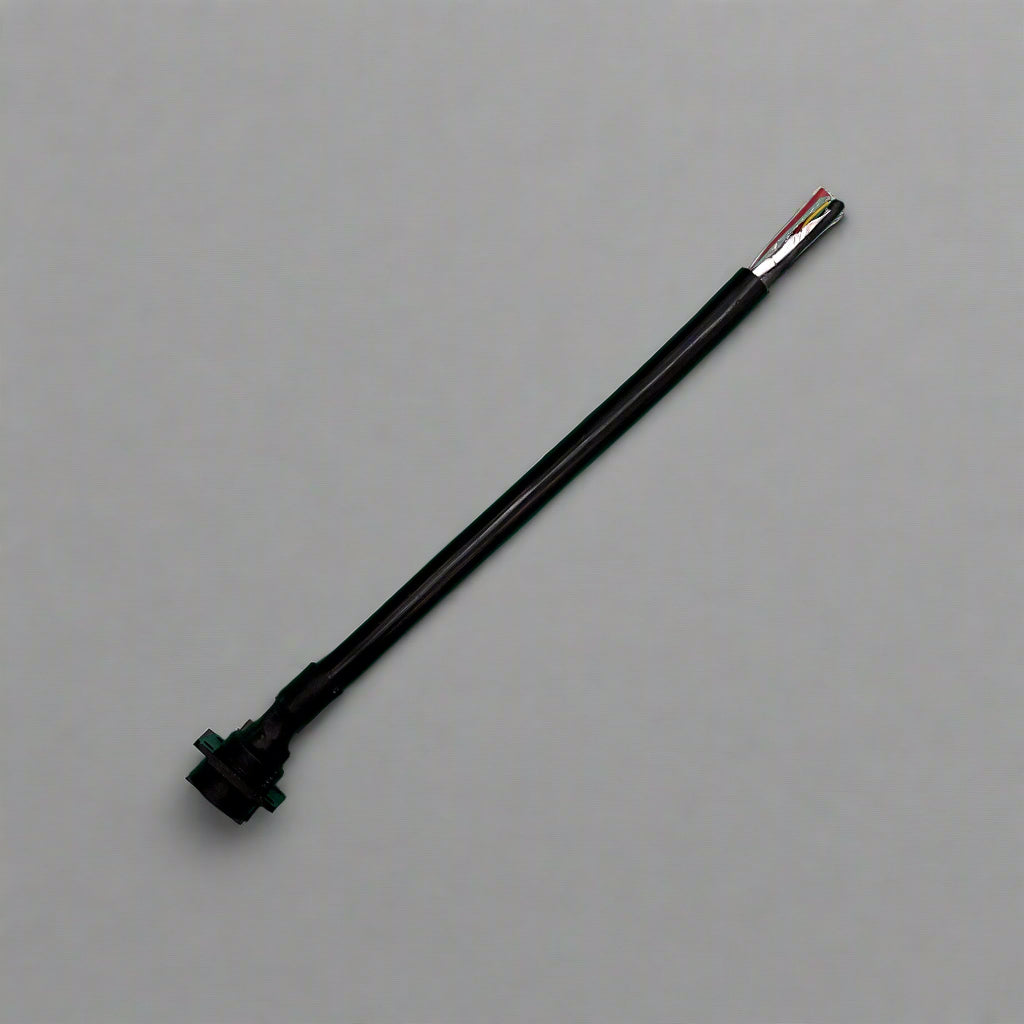

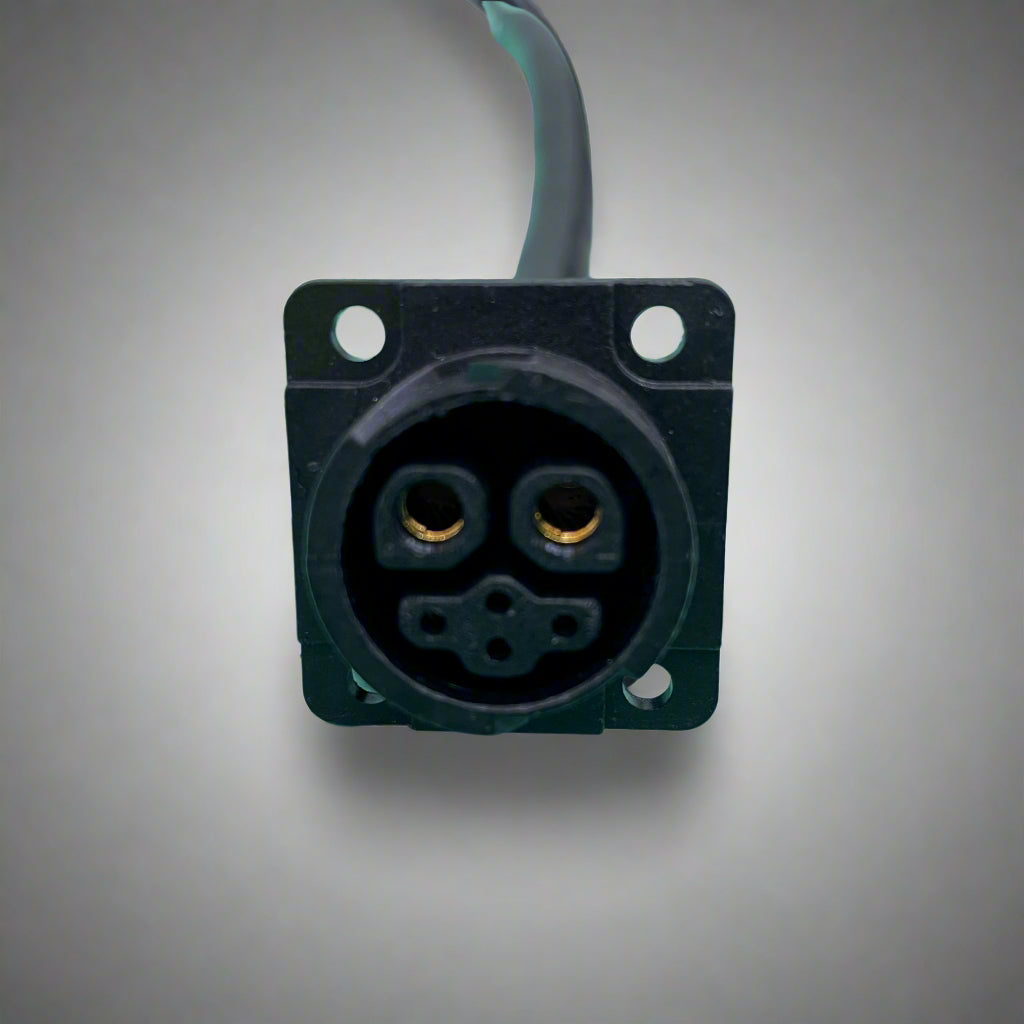

Charging Socket - Chagori 2 + 4 with 6 wires (Female) (CAN) (Type 1)

Charging Socket - Chagori 2 + 4 with 6 wires (Female) (CAN) (Type 1)

Rs. 1,016.00
Rs. 1,016.00
Sale Sold out
Shipping calculated at checkout.
Need Help to Place the Order?
WhatsApp Connect on WhatsApp

This is a Premium-Grade Vehicle Charging Inlet (Female Socket) featuring the Chagori 2+4 configuration. It is the direct replacement part for Ampere (Magnus/Zeal 2023+), Bounce Infinity, and Kinetic Green scooters using CAN-bus communication. Unlike standard aftermarket sockets that are prone to melting, this "High-Current" edition is manufactured with heat-resistant polymers and high-conductivity terminals to withstand the thermal stress of daily charging.

Detailed B2B Specifications

Product Overview

The charging socket is the primary point of failure on many EV scooters due to arcing and heat buildup. This High-Quality Socket is engineered for service centers that want to minimize repeat repairs. It features a complete 6-wire loom to restore both the power path and the CAN-bus data link to the BMS. It is designed to be panel-mounted on the vehicle body.

Resale & Service Advantages

  • Superior Thermal Resistance: The housing is moulded from high-grade, heat-resistant plastic (unlike cheaper variants), significantly reducing the risk of deformation or "melting" during high-amp charging.
  • Service-Ready Pigtail: Comes with pre-soldered, saving the technician time during installation. No need to crimp pins manually.
  • Universal Fitment: Consolidates inventory by fitting a wide range of modern scooters that utilize the standard 2+4 CAN logic.
  • High-Cycle Durability: Internal contact springs are reinforced to maintain tight contact pressure even after hundreds of plug-in cycles.

Technical Specifications (Key Data)

Specification Detail Installer Benefit
Component Type Vehicle Inlet / Socket Panel-mount port (Female Pins) installed on the scooter body.
Connector Interface Chagori 2+4 Female Mates perfectly with standard Chagori Male chargers.
Wire Configuration 6 Wires (Full CAN) 2x Power (Heavy Gauge) + 4x Signal (Data).
Material Quality Premium High-Temp Resists melting/warping under high current load (15A+).
Protocol CAN-Bus Enabled Fully wired for Smart BMS communication.

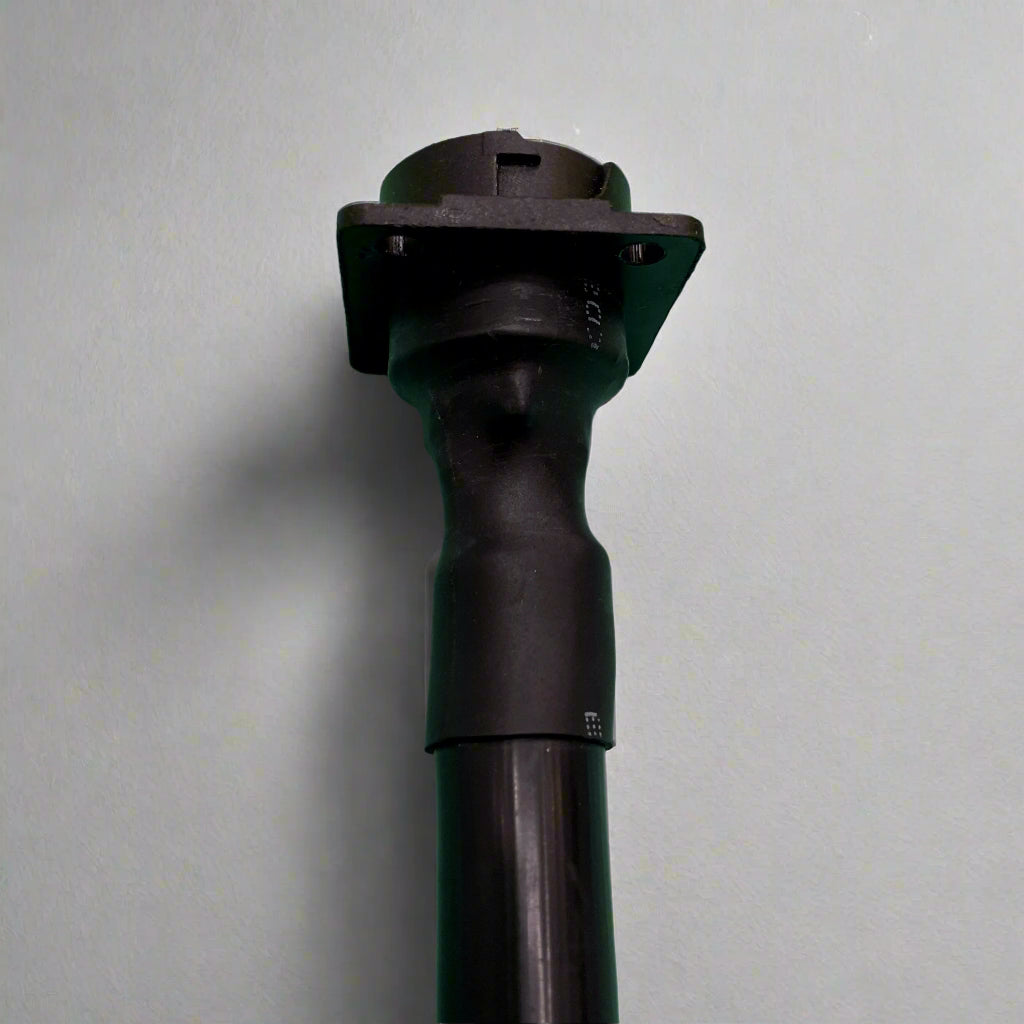

Mounting Standard Flange Direct bolt-on fit for OEM body panels.



Platform Compatibility

Designed for vehicles using the Ampere/Generic CAN wiring standard:

  • Ampere: Magnus EX, Zeal EX (2023+ CAN Models).
  • Bounce Infinity: E1 / E1+ (Removable battery dock interface).
  • Kinetic Green: Select high-speed models.
  • And other OEM assemblers using the Chagori 2+4 CAN standard.

Functional Wiring Architecture (6-Wire)

This socket manages the input from the charger to the internal wiring harness:

Wire Function Critical Purpose Quality Difference
Power Pins (2x Large) Current Intake Heavy-duty contacts minimize resistance and heat generation at the plug point.
CAN Data Pins (2x) BMS Data Link Ensures the scooter can "talk" to the charger to control voltage/cutoff.
Wake/Pilot Pins (2x) Safety Signal Detecting connection status to prevent arcing when unplugging.



Professional Note:

Selling Point: Market this as a "Heavy-Duty Replacement" to customers who have experienced melted charging ports in the past.
