Charging Socket - Amphenol 2 + 4 with 6 Wires (Female) (CAN)

Charging Socket - Amphenol 2 + 4 with 6 Wires (Female) (CAN)

Rs. 1,694.00
Rs. 1,694.00
Sale Sold out
Shipping calculated at checkout.
Need Help to Place the Order?
WhatsApp Connect on WhatsApp

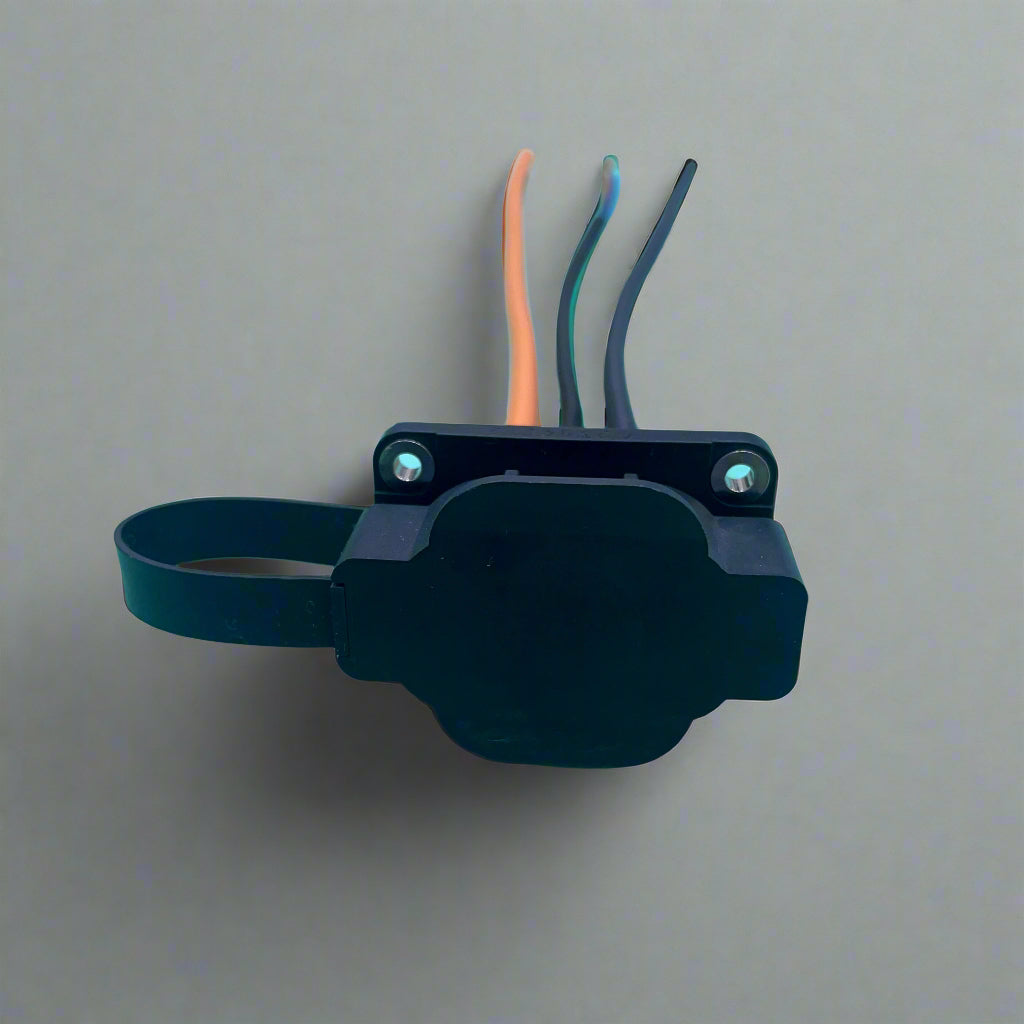

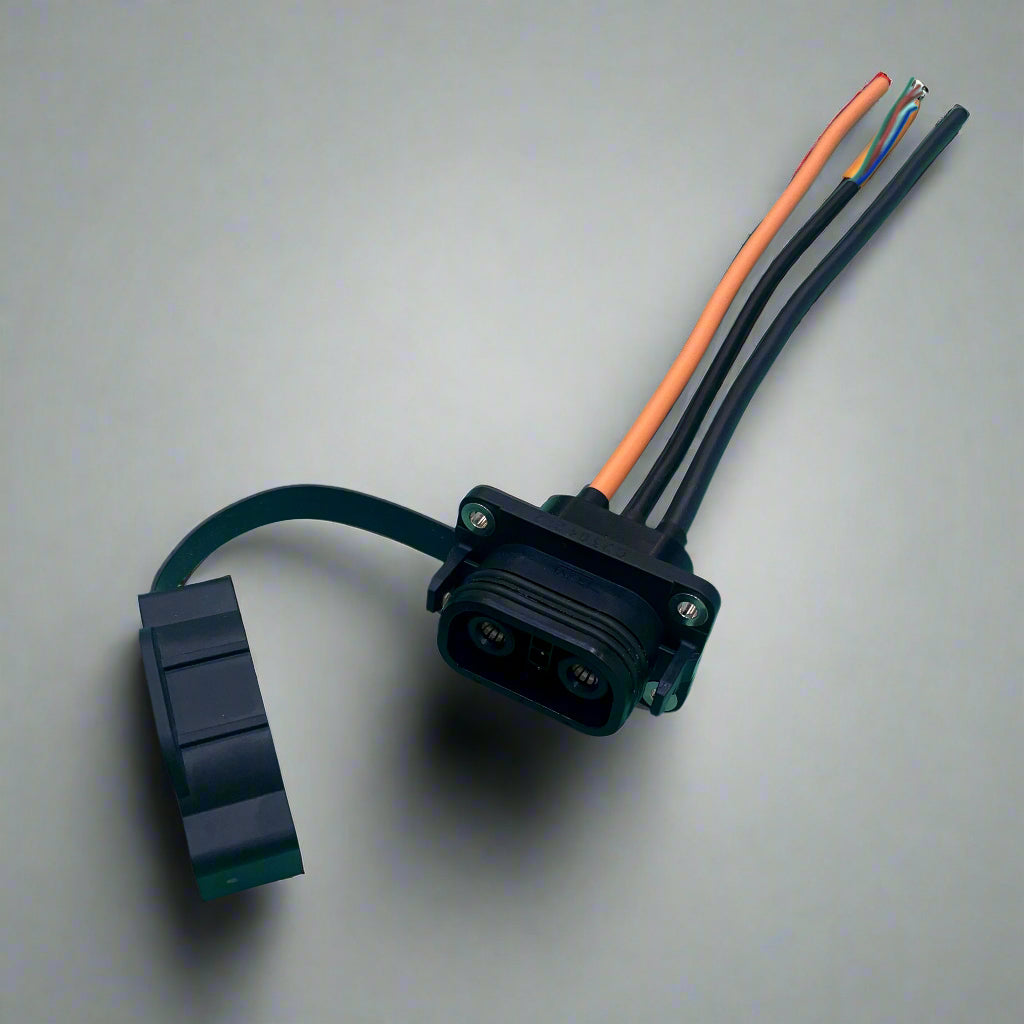

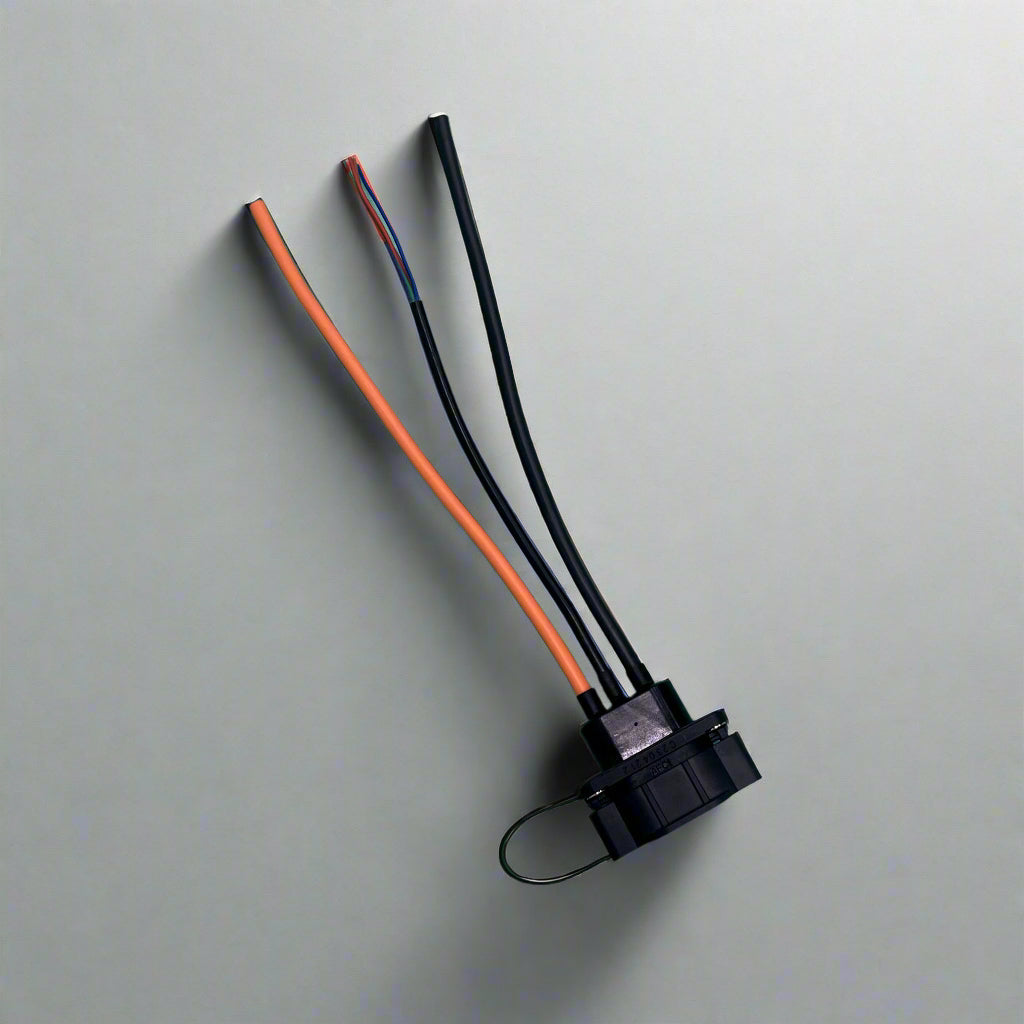

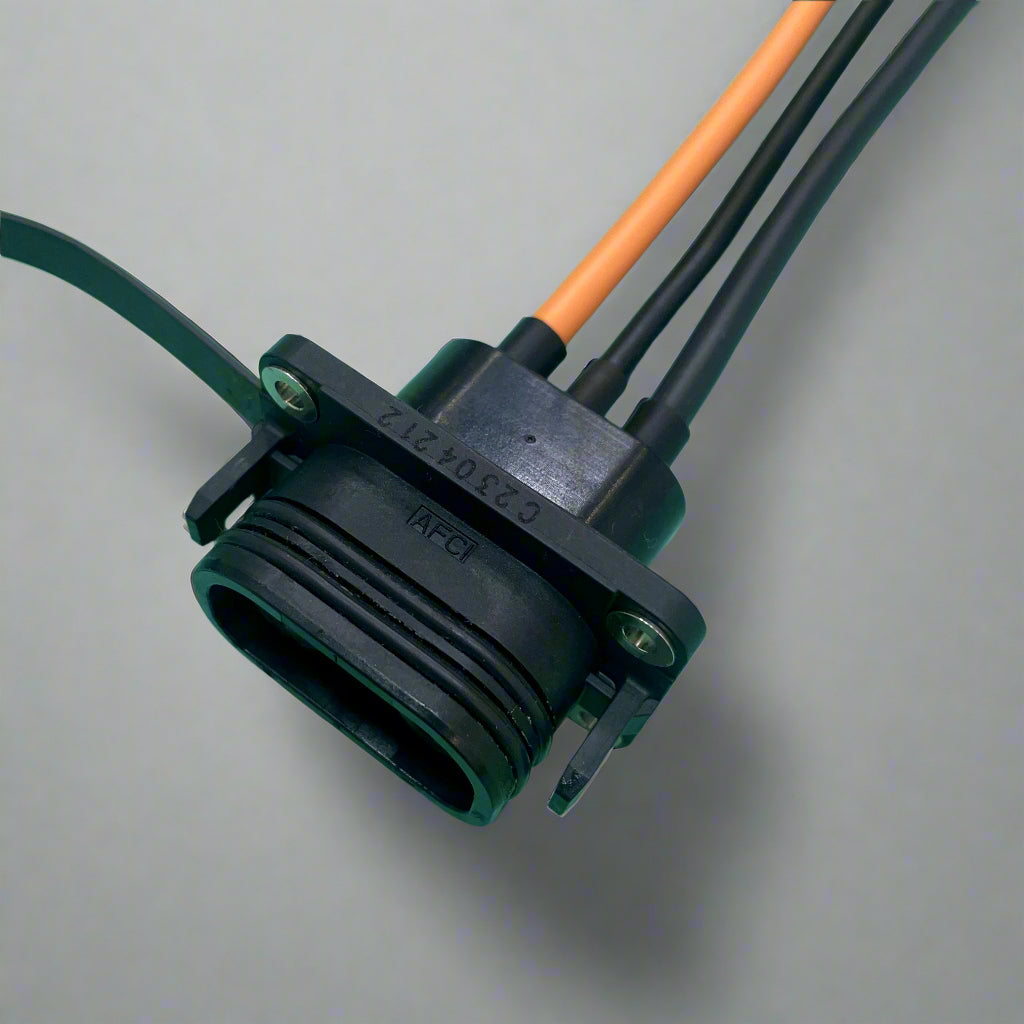

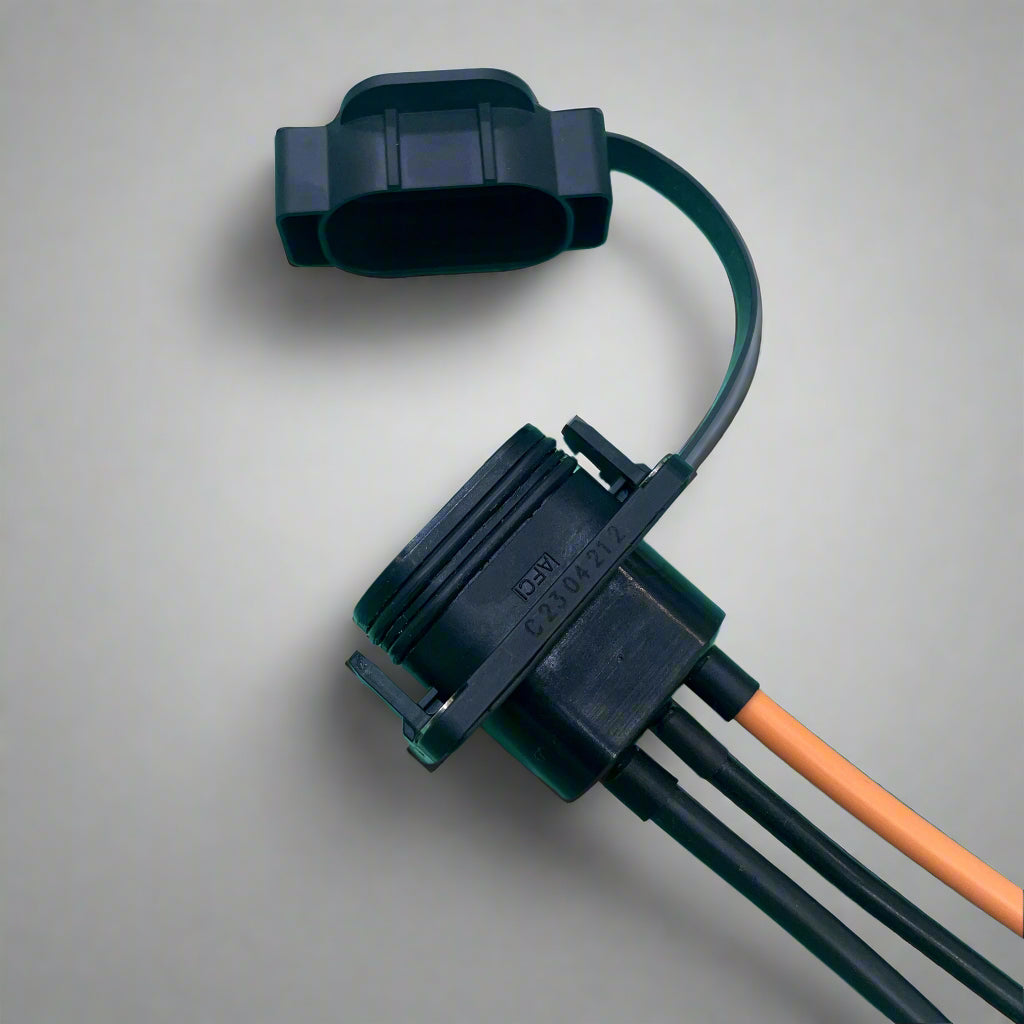

This is the hard-to-source, OEM-grade vehicle charging inlet (Female Socket) featuring the Amphenol 2+4 interface. It is the specific body-mounted port used by the latest generation of "High-Speed" electric scooters, including Ampere (Magnus EX, Nexus, Primus), BattRE, and Kinetic Green. Engineered for high-current applications and fully CAN-bus enabled, this is a premium component that is currently difficult to find in the open market, making it a high-value inventory item for professional service centers.

Detailed B2B Specifications

Product Overview

As electric scooter manufacturers shift towards more secure, automotive-grade connectors, the Amphenol 2+4 system has become the standard for 2023+ models. However, replacement sockets are scarce. This product allows service centers to offer immediate repairs for broken or damaged charging ports on newer vehicles, bypassing long dealership wait times. It is built with reinforced thermal polymers to handle high-speed charging without the risk of melting common in cheaper alternatives.

Resale & Service Advantages

  • Exclusive Inventory: This is a rare, high-demand component not widely available on standard B2B or B2C platforms.1 Stocking this establishes your shop as a specialist in modern EV repairs.
  • OEM-Level Quality: Manufactured to strict automotive standards with high-grade copper alloy contacts and impact-resistant housing, ensuring a factory-perfect fit and finish.
  • Future-Proof Service: Essential for servicing the growing fleet of "Smart" scooters (Ampere Primus/Nexus, etc.) that rely on CAN communication for charging.

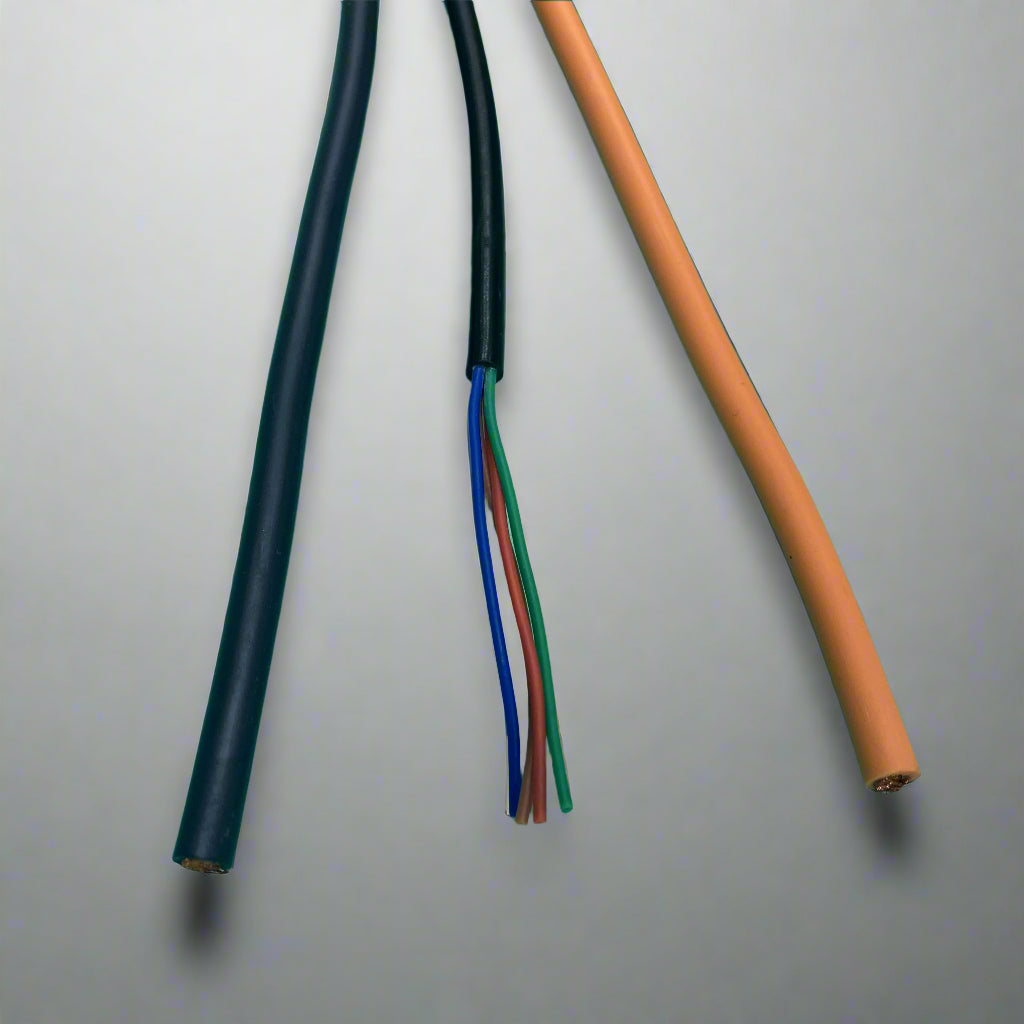

  • Pre-Wired Assembly: Comes with a complete 6-wire harness (Power + Data), allowing for a clean splice-in installation without the need for specialized crimping tools.

Technical Specifications (Key Data)

Specification Detail Installer Benefit
Component Type Vehicle Inlet / Socket Female Panel-Mount Port (Installed on Scooter Body).

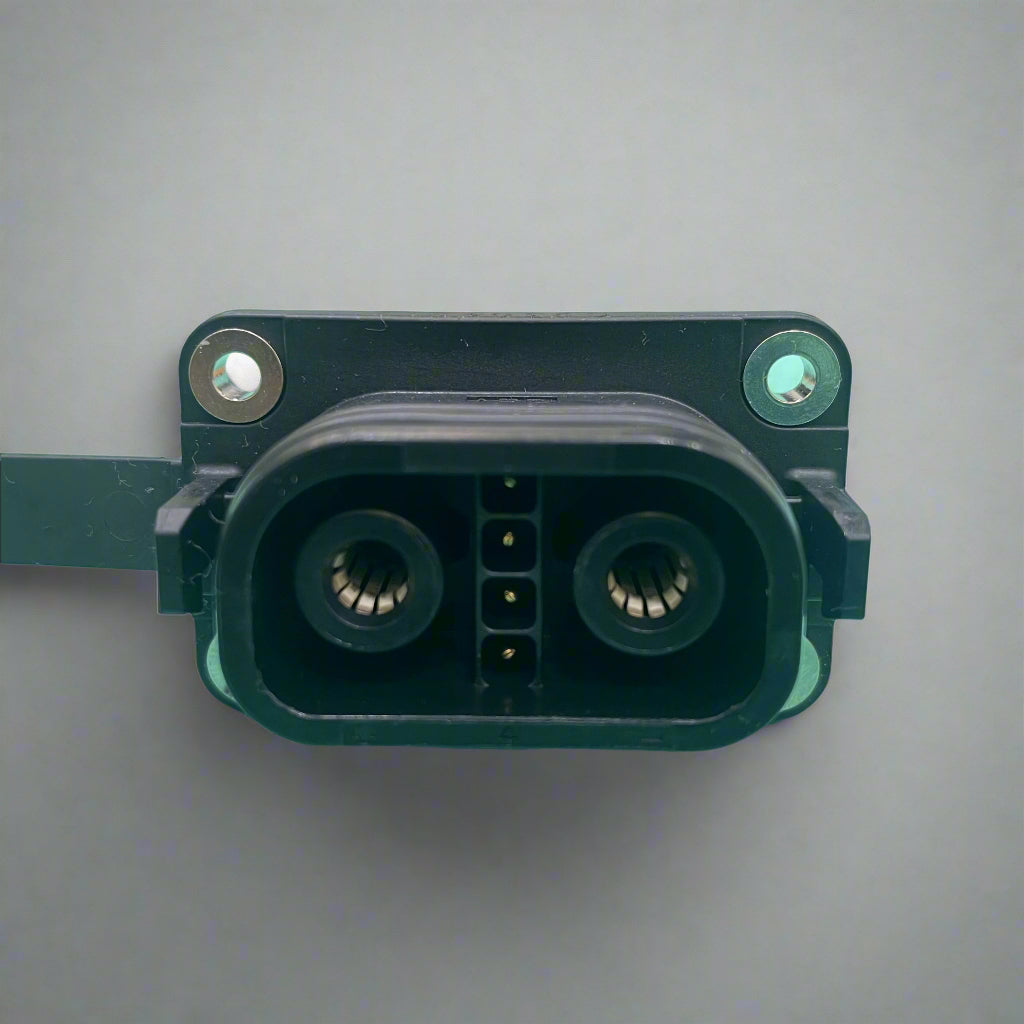

Connector Interface Amphenol 2+4 Female Distinct rectangular/oval shape with secure locking mechanism.
Wire Configuration 6 Wires (Full CAN) 2x Power (High-Current) + 4x Signal (Data/Pilot).
Material Quality Industrial PA66/PBT Extremely high heat resistance; prevents socket deformation.
Current Rating High-Amp Capacity Designed to sustain continuous high-speed charging loads.
Mounting 4-Point / Flange Direct bolt-on replacement for OEM body panels.



Platform Compatibility

Direct Fitment for New-Gen CAN Models:

  • Ampere: Magnus EX, Zeal EX, Primus, Nexus (2023 Onwards).
  • BattRE: Storie, One (High-Speed Variants).
  • Kinetic Green: Zulu, Zing (Select Models).
  • And other OEMs adopting the Amphenol 2+4 standard.

Functional Wiring Architecture (6-Wire)

This socket supports the complex requirements of modern BMS (Battery Management Systems):

Wire Function Critical Purpose Quality Difference
Power Pins (2x Large) Energy Transfer Heavy-duty contacts ensure low resistance, keeping the socket cool during charging.
CAN Data Pins Smart Communication Transmits battery health data to the charger to optimize charging curves.
Wake/Pilot Pins Safety Interlock Ensures the vehicle is immobilized and safe before current flows.



Professional Note:

Market Opportunity: Most local spare parts shops do not carry this specific Amphenol socket yet, as it belongs to the newest vehicle generation. By stocking this, you provide a critical solution for customers facing "Charger Port Damage" on their new bikes.

Installation Tip: The Amphenol connector is keyed and will only fit the matching male charger plug. Ensure the vehicle uses this Rectangular/Oval style port, not the older round circular type.
