Charger Cable - XRL 3 Pin with wire (Male) (3 ft length)
Charger Cable - XRL 3 Pin with wire (Male) (3 ft length)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp

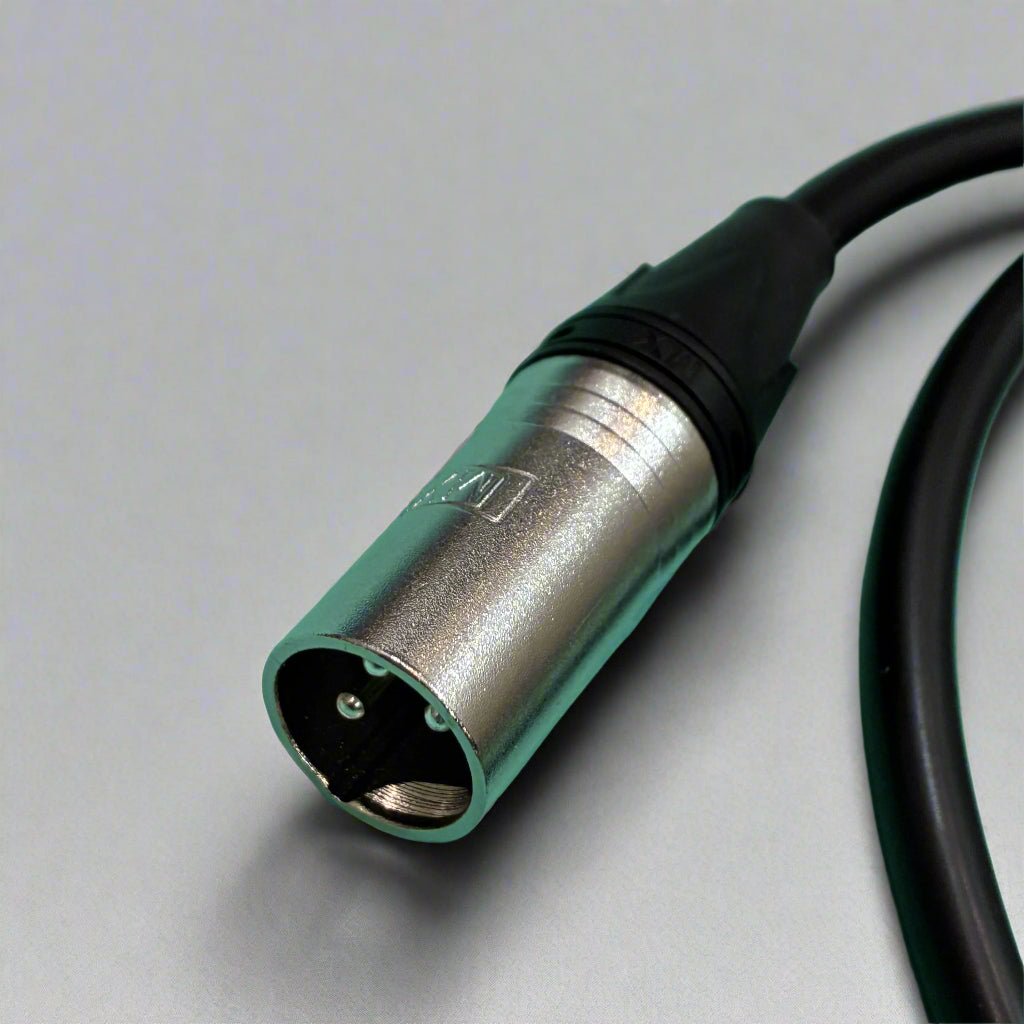

This is a standard repair cable featuring the 3-Pin XLR (MIC Type) Male connector. It is the primary charging interface for older generation electric scooters from Ampere (Magnus, Zeal, Reo) and Hero Electric (Optima, Flash). Configured with 2 active power wires (Positive/Negative), this Non-CAN cable is a high-volume consumable for service centers repairing broken charger plugs or melted sockets on out-of-warranty vehicles.
Detailed B2B Specifications
Product Overview
Designed for general electronics repair, this "pigtail" cable allows technicians to refurbish faulty chargers instead of scrapping them. It features the industry-standard circular XLR Male plug (often called "MIC connector" in local markets). With a pre-stripped 2-wire tail, it is ready for immediate soldering into 48V or 60V charger boards.
Resale & Service Advantages
- Mass Market Repair: Fits thousands of older e-scooters currently on Indian roads (Pre-2022/Non-CAN era).
- Cost-Effective Solution: A simple repair part can save a customer ₹2,500+ on a new charger, building trust and loyalty.
- Fixes Common Failures: Ideal for replacing plugs with bent pins, loose locking latches, or heat damage from loose connections.
- Universal Application: Compatible with Lead-Acid and basic Lithium-Ion chargers using the 3-Pin XLR standard.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |

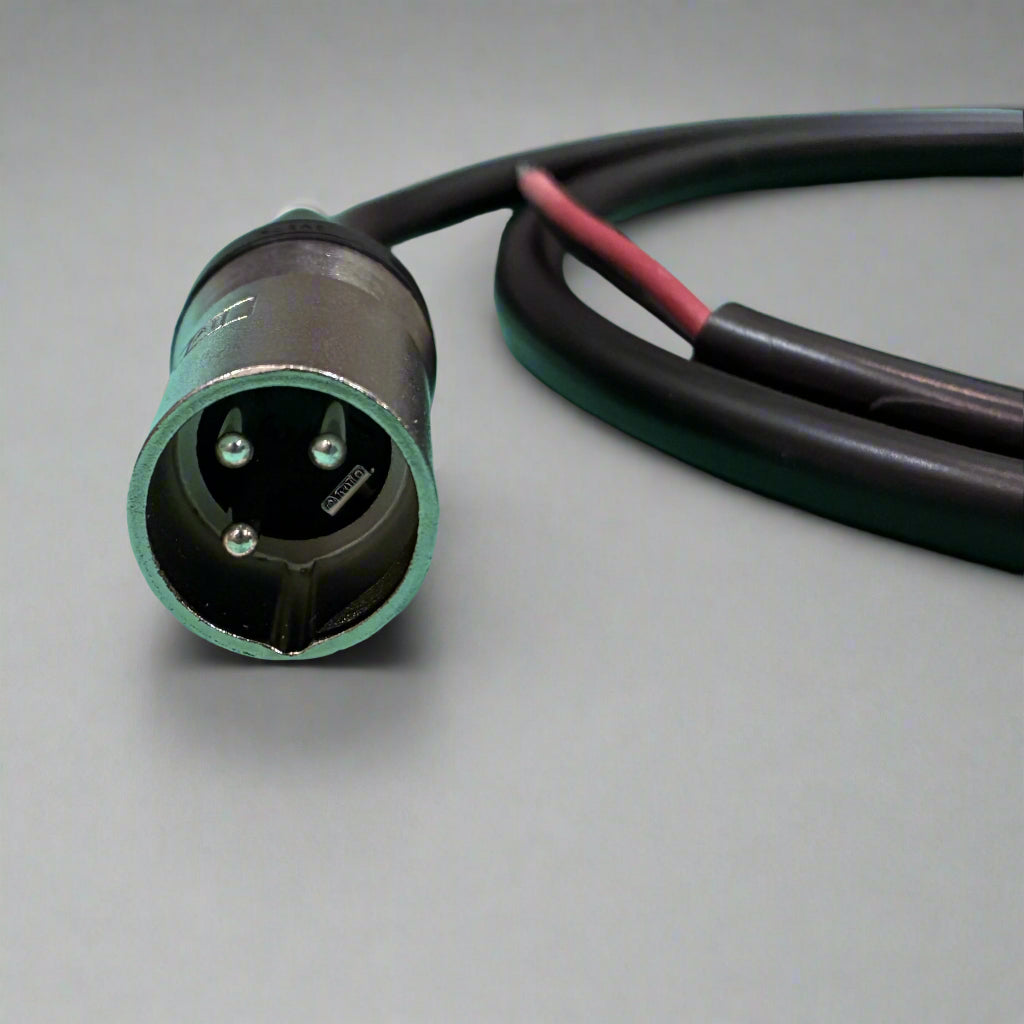

| Connector Interface | XLR 3-Pin Male | Standard "Microphone" style round plug with 3 pins and locking latch. |
| Active Wires | 2 Wires (Power Only) | Red (+) & Black (-). Simplified wiring for analog chargers. |
| Communication | Non-CAN | Pure DC power transfer. No data lines to confuse installation. |

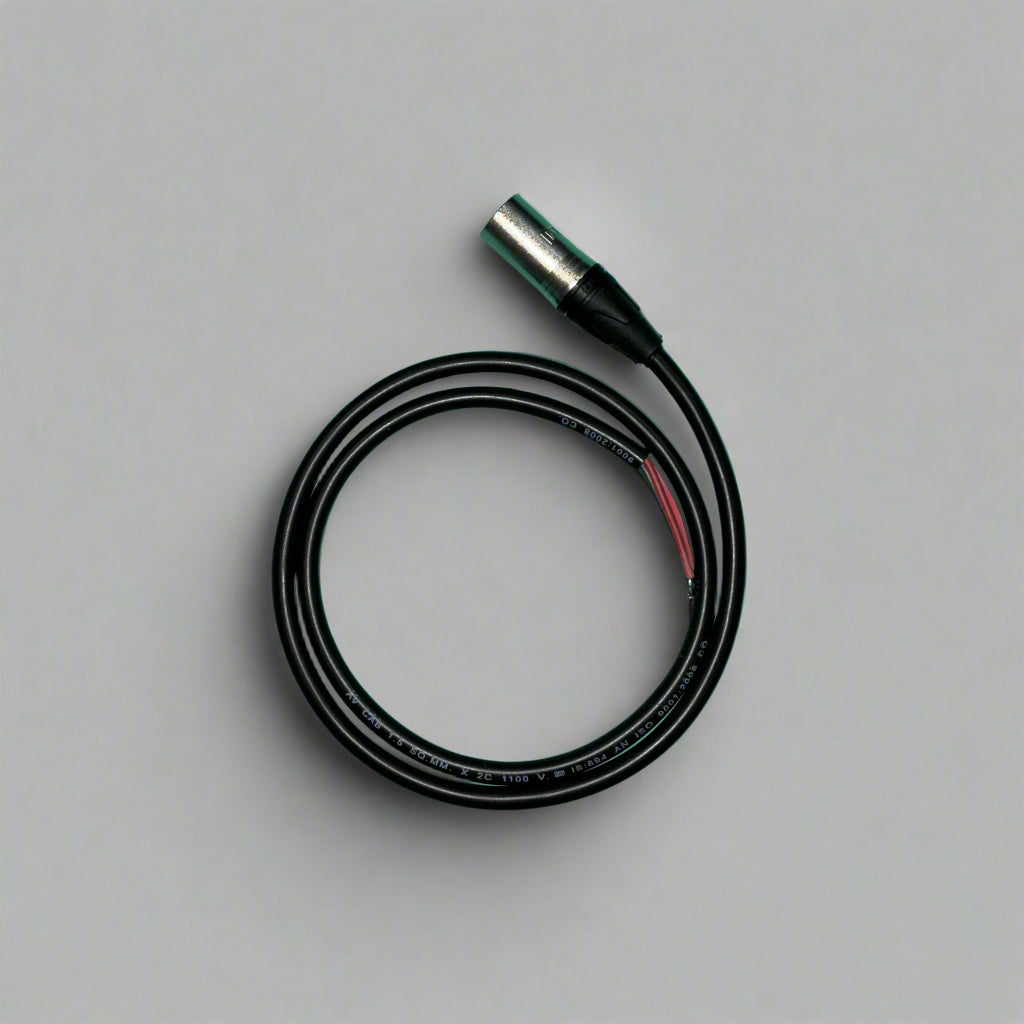

| Length | 3.0 Feet (~1 Meter) | Compact length, ideal for portable chargers. |
| Current Rating | Standard (Up to 10A) | Suitable for 48V/60V 6A-10A chargers. |
Platform Compatibility
Direct Replacement for Non-Smart / Analog Chargers used on:
- Ampere: Magnus (Old), Zeal (Old), Reo.
- Hero Electric: Optima (HX/LX), Flash, Nyx (Older variants).
- Okinawa: Ridge (Lead Acid versions).
- Generic E-Rickshaws: Select models using XLR charging ports.
Functional Wiring Architecture (2-Wire Setup)
Although the connector has 3 pins, this repair cable is configured for the standard 2-Wire Logic used by 90% of Indian e-scooters in this category.
| Pin Number | Function | Wire Color (Typical) |
| Pin 1 | Positive (+) | Red |
| Pin 2 | Negative (-) | Black |
| Pin 3 | Unused / Empty | N/A (Some specific chargers use this for Inhibit/NTC, but this generic cable leaves it floating). |
Professional Note:
Polarity Warning: While Pin 1 (+) and Pin 2 (-) is the standard for 99% of scooters, always check the output polarity of the charger board with a multimeter before soldering. Some rare brands reverse the polarity.
Terminology: Mechanics often call this the "MIC Pin" or "Round 3-Pin" connector. Ensure you are buying the MALE version (pins visible) to repair the Charger side.
