Charger Cable - Revolt 2 + 4 with 6 wires (Male) (CAN) (4 ft length)
Charger Cable - Revolt 2 + 4 with 6 wires (Male) (CAN) (4 ft length)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp

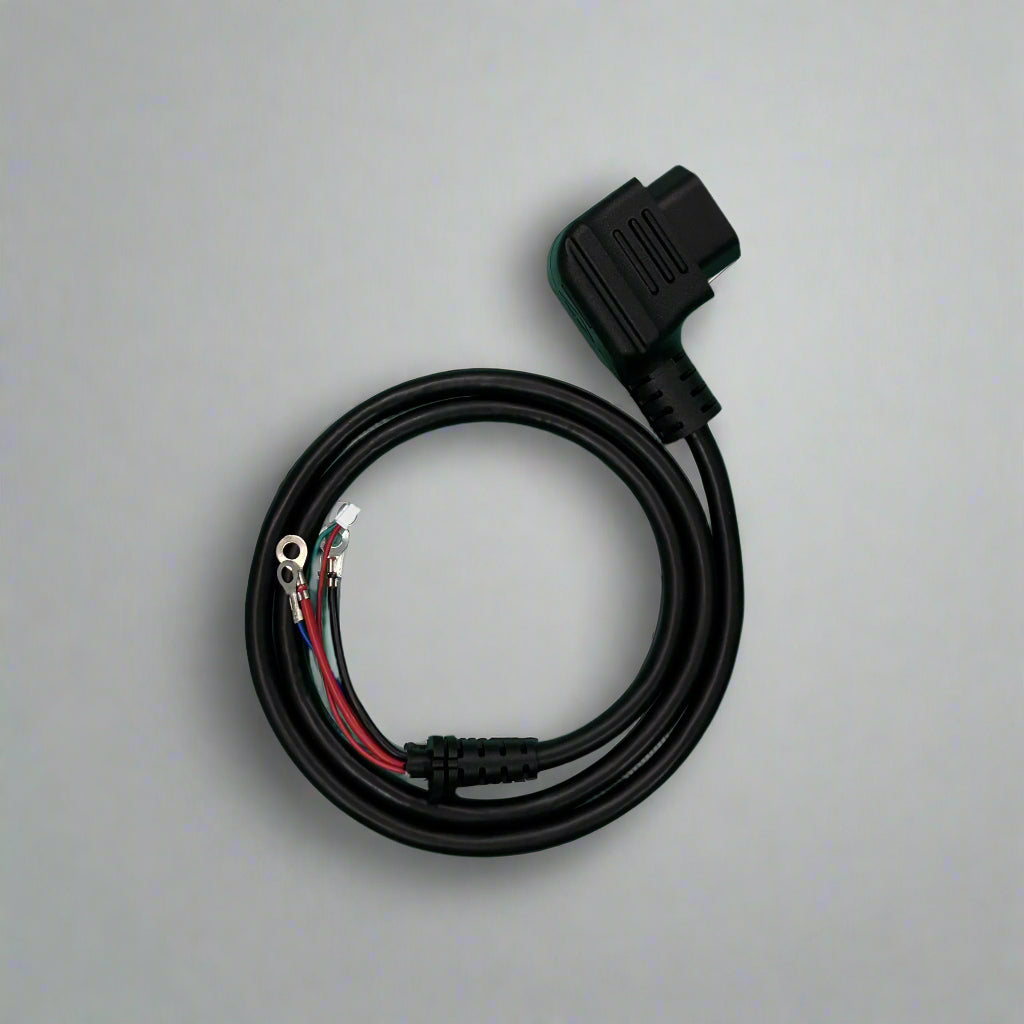

This is a specialized CAN-enabled charging cable designed exclusively for Revolt Electric Motorcycles. It features the specific Revolt 2+4 Male connector and is fully wired with 6 active lines to support the "Smart Charging" handshake required by the RV400, RV400 BRZ, RV BlazeX, and RV1/RV1+. Engineered for 72V/84V systems, this cable ensures error-free communication with the vehicle's BMS, making it a critical repair part for official service centers and EV technicians.
Detailed B2B Specifications
Product Overview
Designed for professional repair of Revolt battery chargers, this cable assembly restores the vital link between the charger and the motorcycle’s sophisticated Battery Management System (BMS). Unlike universal cables, this unit includes the specific data lines required to unlock the charging port and monitor cell balancing. It is built with high-voltage rated insulation to safely handle the 72V+ architecture of Revolt bikes.
Resale & Service Advantages
- Model-Specific Logic: Wired specifically for the Revolt CAN Protocol, preventing the common "Red/Green Blinking Error" caused by generic cables that lack proper data lines.
- Full Fleet Coverage: One cable supports the entire lineup, from the flagship RV400 to the newer RV1 and BlazeX models.2
- Heavy-Duty Insulation: The jacket is rated for high-voltage DC (up to 100V) to match Revolt’s 72V nominal / 84V peak architecture.
- Service Center Standard: 4.0 ft length matches the original OEM charger specifications, ensuring a factory-finish repair.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |
| Connector Interface | Revolt 2 + 4 Male | Specialized 6-pin connector (2 Large + 4 Small). |
| Pin Configuration | 6-Wire (Full CAN) | 2x Power (Charging) + 4x Signal (BMS Communication). |
| Communication | CAN-Bus Enabled | Essential for "Wake-up" signal and SoC monitoring. |
| Voltage Rating | 72V - 84V DC | Rated for the high-voltage architecture of electric motorcycles. |
| Length | 4.0 Feet (~1.2 Meters) | Standard reach for portable chargers. |
| Material | Pure Copper / High-V Insulation | Ensures safety and durability at high voltages. |
Platform Compatibility
Direct Replacement for:
- Revolt RV400 (Premium & Standard)
- Revolt RV400 BRZ
- Revolt RV BlazeX
- Revolt RV1 / RV1+
- Note: Specifically for CAN-enabled chargers. Not for older non-smart generic chargers.
Functional Architecture (The 6-Wire Setup)
Revolt bikes require a digital "handshake" to start charging. This 6-wire loom facilitates that process:
| Wire Function | Critical Purpose | System Benefit |
| Power Pins (2x Large) | High-Voltage Charging | Carries the 72V/84V DC current to the battery pack. |
| CAN Data Pins (2x) | BMS Communication | Allows the charger to adjust current based on real-time battery temperature and voltage. |
| Wake/Pilot Pins (2x) | System Activation | Sends the "Wake-Up" signal to the bike's ECU/BMS to open the charging port relay. |
Professional Note:
Technician Alert: Revolt chargers operate at a higher voltage (72V system) than most electric scooters (48V/60V). Ensure you are using this High-Voltage Rated cable to prevent insulation breakdown. This cable is strictly for CAN-based chargers; installing it on a non-CAN charger without connecting the data lines may result in the bike refusing to charge.
