Charger Cable - Ola Charging Gun (Male) (CAN) (IEC 62196-6)
Charger Cable - Ola Charging Gun (Male) (CAN) (IEC 62196-6)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp

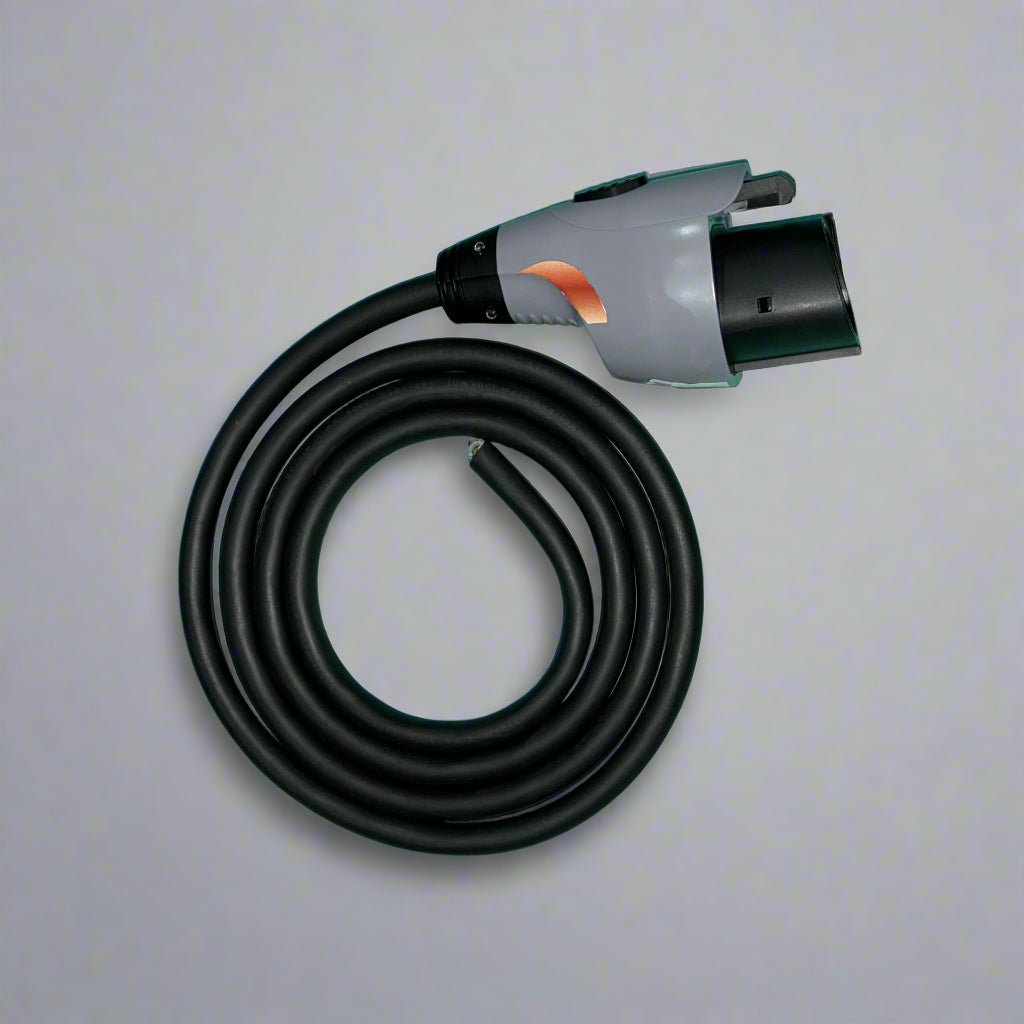

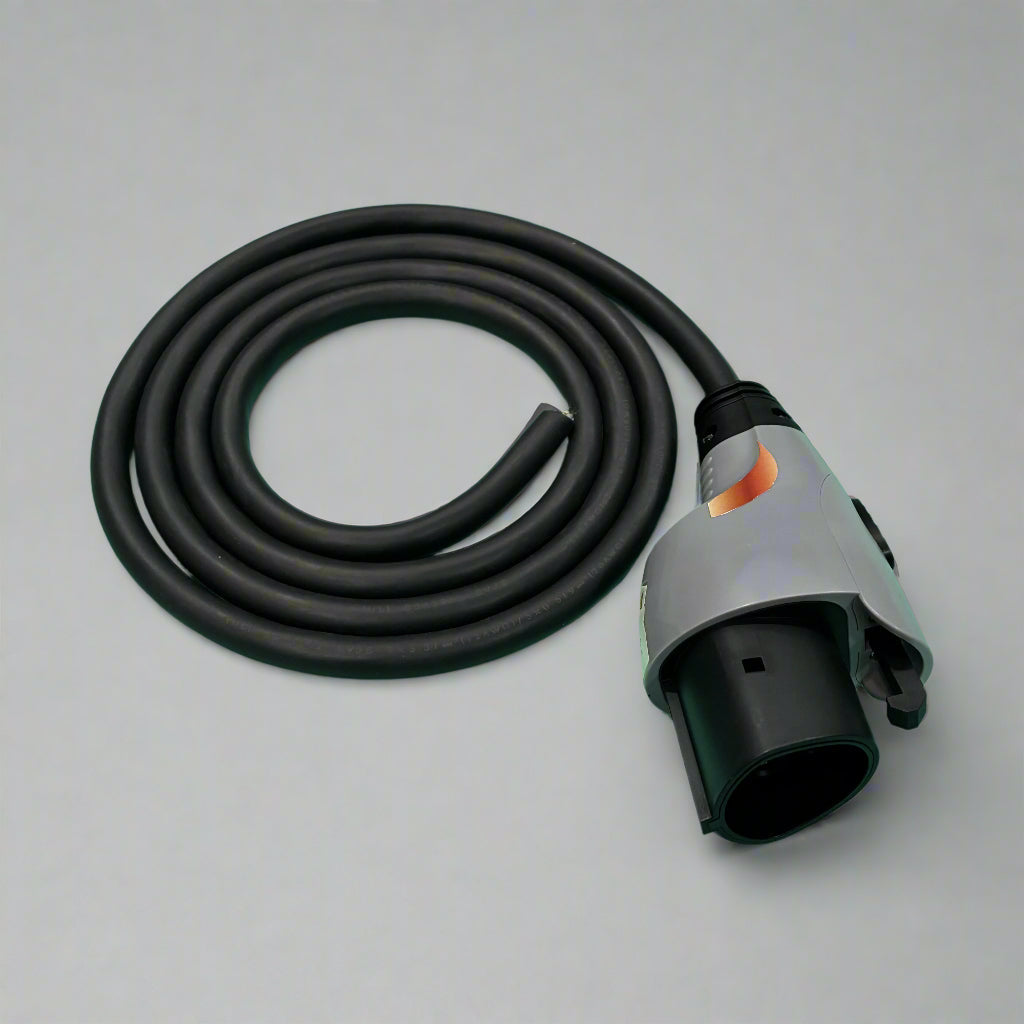

This is a Premium-Grade DC Charging Gun (Male Connector) designed to meet the IEC 62196-6 (Type 6) international standard. It is the specific connector used for Ola Electric Scooters (S1 Pro, S1 Air, S1 X) and the Roadster motorcycle series. Engineered for DC Fast Charging, this gun features a CAN-bus enabled 1.5-meter cable assembly, making it the ideal replacement part for repairing damaged chargers or building custom charging stations for modern LEV fleets.
Detailed B2B Specifications
Product Overview
The IEC 62196-6 (Type 6) is the emerging global standard for DC charging of scooters and motorcycles, offering a compact yet high-power interface. This charging gun connects the external charger to the vehicle's inlet. It is built to withstand the rigors of daily use with a ruggedized handle, high-flexibility cable, and precision-molded pins that ensure a secure, arc-free connection during high-current sessions.
Resale & Service Advantages
- Standardized "Type 6" Compliance: Unlike proprietary connectors, this gun adheres to the specific dimensional and safety requirements of IEC 62196-6, ensuring perfect interoperability with Ola’s DC charging architecture.
- Smart Charging Ready: Pre-wired with CAN High & CAN Low communication lines, allowing the charger to manage "Hypercharging" protocols and optimize battery health (SoC monitoring/Balancing).
- Service-Center Durable: The connector head is molded from impact-resistant industrial plastic to survive drops on workshop floors, while the cable strain relief is reinforced to prevent fraying at the handle—a common failure point.
- Plug-and-Play Repair: Comes with a 1.5-meter pre-terminated cable, allowing technicians to easily swap out a damaged gun on an existing charger without needing to crimp new terminals.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |
| Standard | IEC 62196-6 (Type 6) | The dedicated standard for DC EV couplers (up to 120V/100A). |

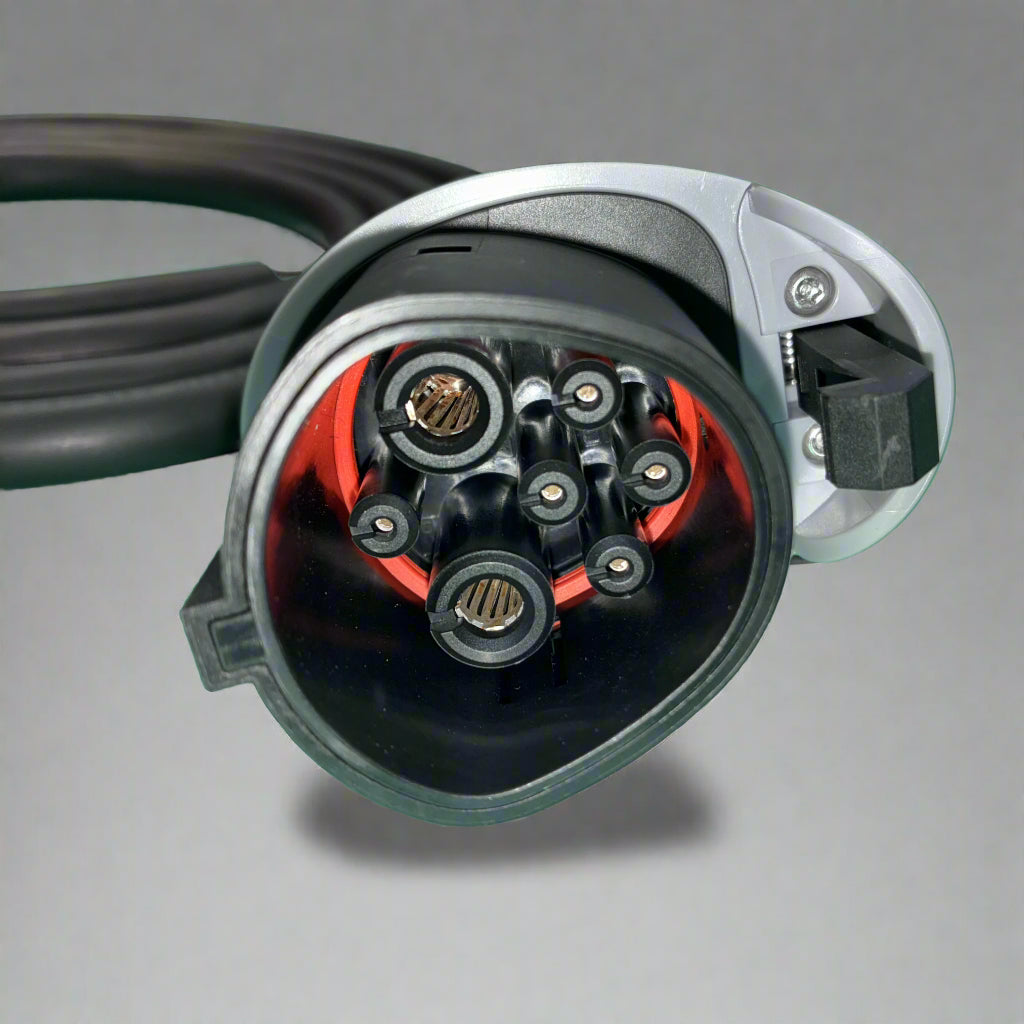

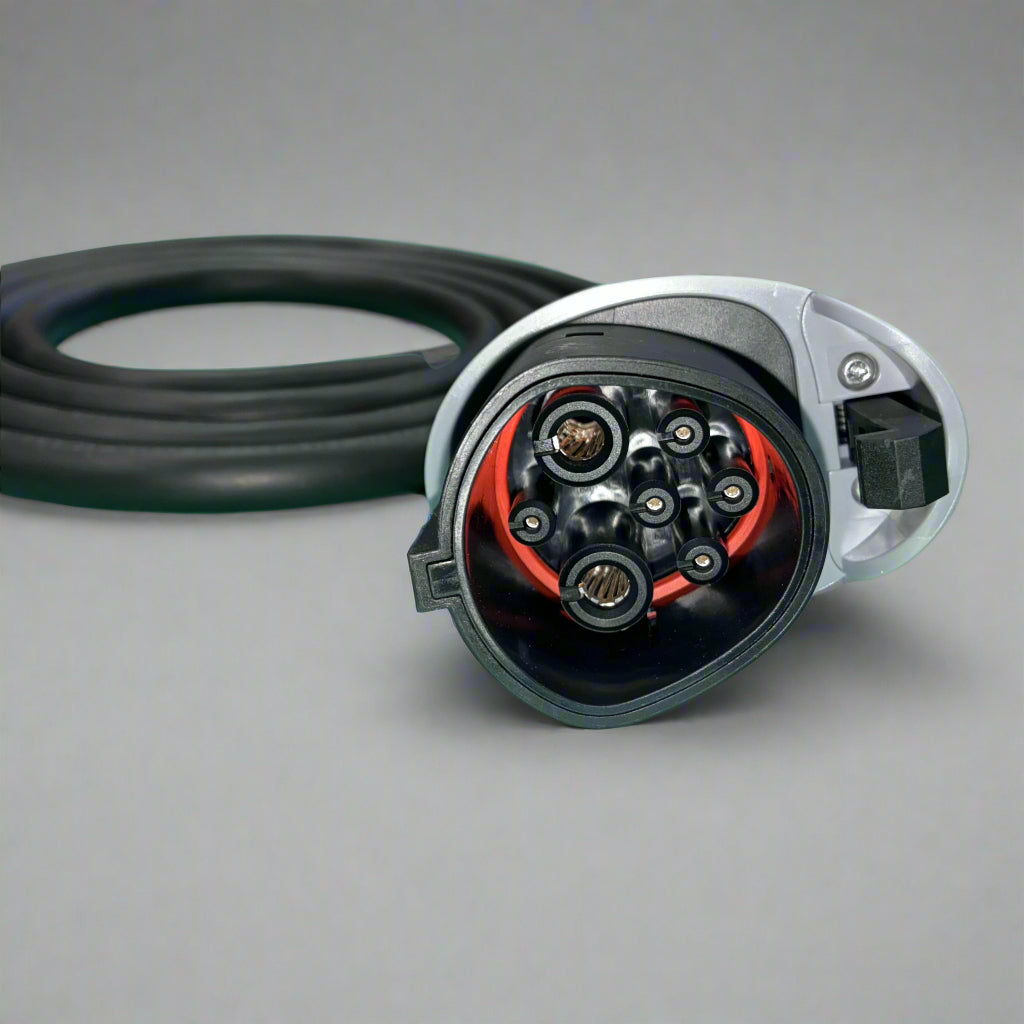

| Connector Interface | Ola Male Gun | Rectangular/Oval profile with DC pin layout. Mates with vehicle inlet. |
| Wire Configuration | 6-Wire (Full CAN) | 2x DC Power (High-Current) + 4x Signal (Data/Pilot). |
| Cable Length | 1.5 Meters (~5 Feet) | Optimal length for home chargers and public stations. |
| Voltage Rating | 120V DC (Max) | Safe for Ola’s high-voltage battery architecture. |
| Material | Impact-Resistant ABS | Designed for longevity in commercial/fleet environments. |
Platform Compatibility
Direct Fitment for Type 6 DC Vehicles:
- Ola S1 Pro (Gen 1 / Gen 2)
- Ola S1 Air
- Ola S1 X / S1 X+
- Ola Roadster (All Variants)
- And other Light EVs adopting the IEC 62196-6 (Type 6) DC standard.
Functional Wiring Architecture (Type 6 Logic)
This gun manages the sophisticated DC charging process:
| Wire Function | Critical Purpose | Why it Matters |
| DC Power Pins (+/-) | Energy Transfer | Heavy-gauge copper pins handle sustained DC current for fast charging. |
| CAN Data Pins | BMS Communication | Facilitates the "Handshake" where the bike requests specific voltage/amps. |
| Pilot / Proximity | Safety Interlock | Ensures the gun is physically locked and safe before power is released. |
Professional Note:
Terminology: In the B2B market, this is increasingly referred to as a "Type 6 Connector". It is strictly a DC charging interface.
Service Tip: This is the Male Gun (the part you hold in your hand). It is the most abused part of any charger. Stocking this allows you to repair expensive fast chargers where only the handle or cable has been damaged (e.g., run over by a vehicle or chewed by pets).
