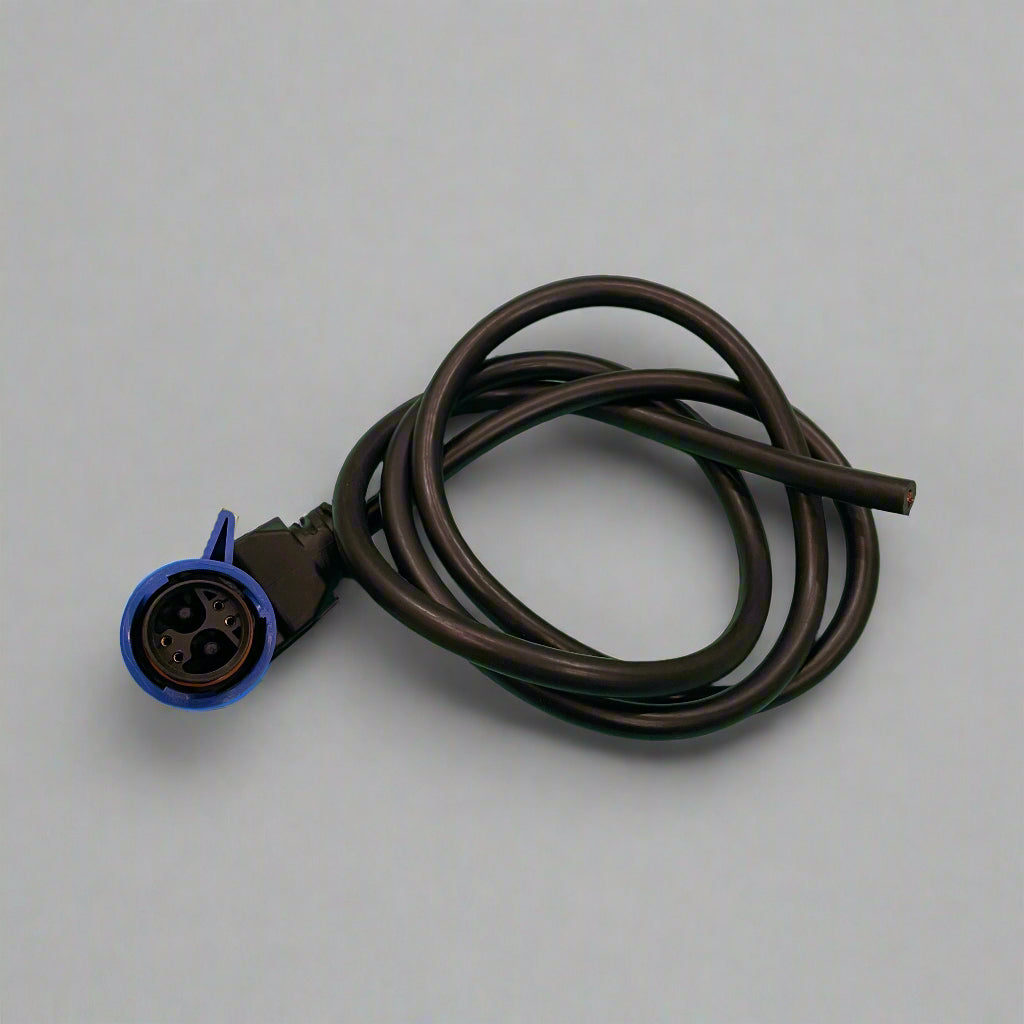

Charger Cable - Chagori 2 + 4 with 2 wires (Male) (Non-CAN) (4 ft length) (Type 2)
Charger Cable - Chagori 2 + 4 with 2 wires (Male) (Non-CAN) (4 ft length) (Type 2)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp
This is a specific repair cable designed for "Non-CAN" electric scooter chargers, widely used for Okinawa models (Praise Pro, iPraise+). While it utilizes the standard Chagori 2+4 Male connector housing, it is configured with 2 active power wires only. It is a purely analog power delivery cable (Positive/Negative) with no data communication lines. An essential stock item for repairing standard 2-wire chargers.
Detailed B2B Specifications
Product Overview
Designed for service centers and electronics repair shops, this cable is the standard replacement part for chargers that do not require BMS communication. It features a robust Chagori interface with a simplified 2-wire configuration, ensuring efficient power transfer for basic charging systems. Stocking this cable allows technicians to refurbish damaged chargers rather than replacing the entire unit.
Resale & Service Advantages
- Targeted Repair Solution: Specifically caters to the high volume of Okinawa scooters on the road, ensuring steady demand for repairs.
- Simplified Architecture: With only 2 wires (V+ and V-), soldering and installation are faster and less prone to error compared to complex CAN cables.
- Cost-Effective: Removes the cost of unused copper data lines, maximizing profit margins on charger repairs.
- Durable Housing: Uses the industrial-grade Chagori housing to ensure a tight, vibration-resistant fit, even though data pins are absent.
Technical Specifications (Key Data)
| Specification | Detail | Installer Note |
| Connector Housing | Chagori 2+4 Male | Physical housing fits standard 6-pin vehicle inlets. |
| Active Wires | 2 Wires Only | Red (Positive) + Black (Negative). |
| Communication | Non-CAN | No data/signal wires. Power transfer only. |
| Length | 4.0 Feet (~1.22m) | Standard reach for external chargers. |
| Current Handling | Standard Charging | Optimized for standard 2-wire charger output. |
Platform Compatibility
Primary Fitment (Non-CAN Models):
- Okinawa (Praise Pro, iPraise+, and other high-speed models using 2-wire logic).
- Other regional EV brands utilizing the Chagori interface for pure power transfer.
Functional Wiring Architecture (2-Wire Logic)

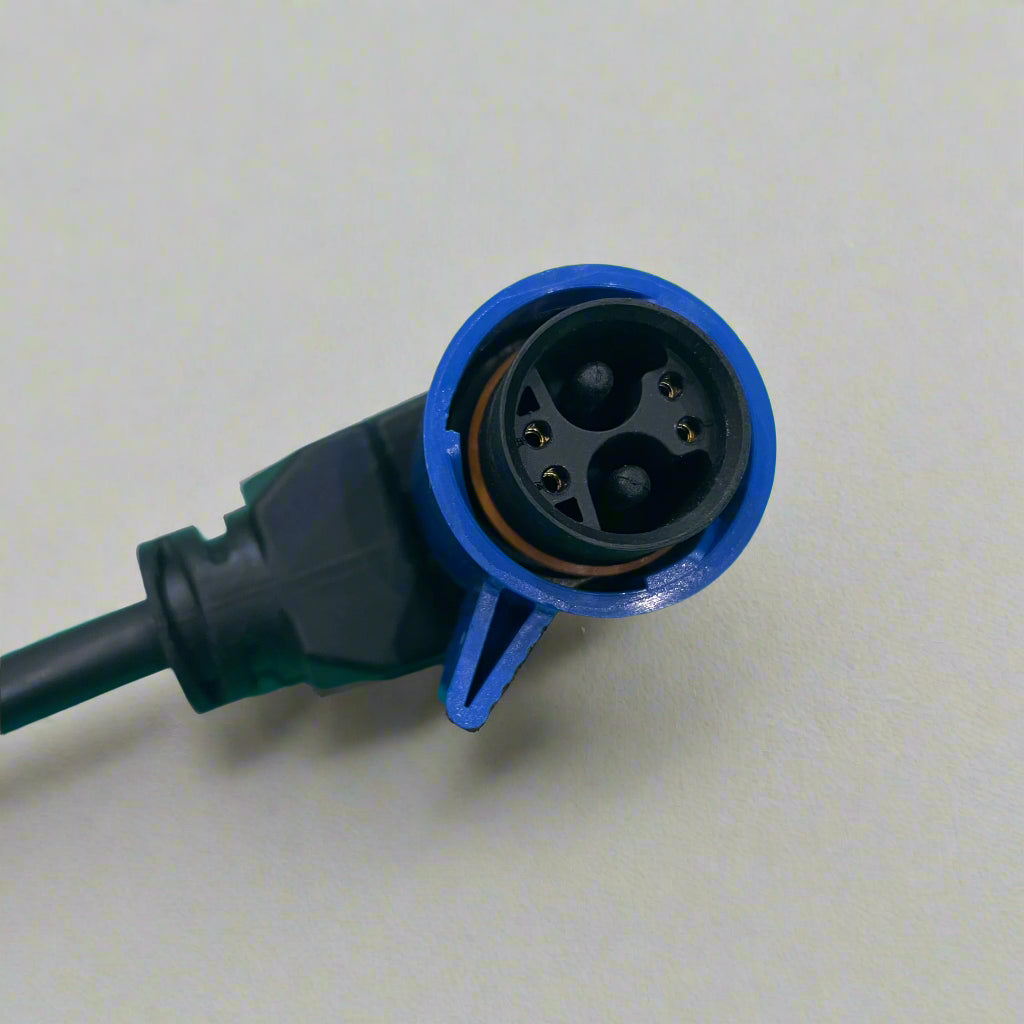

Understanding the internal configuration: Unlike fully populated cables, this version utilizes the 6-pin housing but ignores the small data pins.
| Wire Function | Purpose | Logic |
| Power Pins (2x Large) | Main Energy Transfer | Active. Delivers DC voltage to the battery. |
| Signal Pins (4x Small) | Data/BMS | Inactive/Empty. These positions exist in the plastic housing but contain no wires/pins. |
Professional Note:
Important Distinction: This is a Non-CAN cable. It looks physically identical to the 6-wire version on the outside (connector face) but is internally different. Please confirm the charger being repaired utilizes a simple 2-wire (Red/Black) output before installation. Not suitable for smart BMS scooters requiring data handshakes.
