Charger Cable - Amphenol 2 + 4 with 6 wires (Male) (CAN) (4 ft length)
Charger Cable - Amphenol 2 + 4 with 6 wires (Male) (CAN) (4 ft length)
Couldn't load pickup availability
Need Help to Place the Order?
Connect on WhatsApp

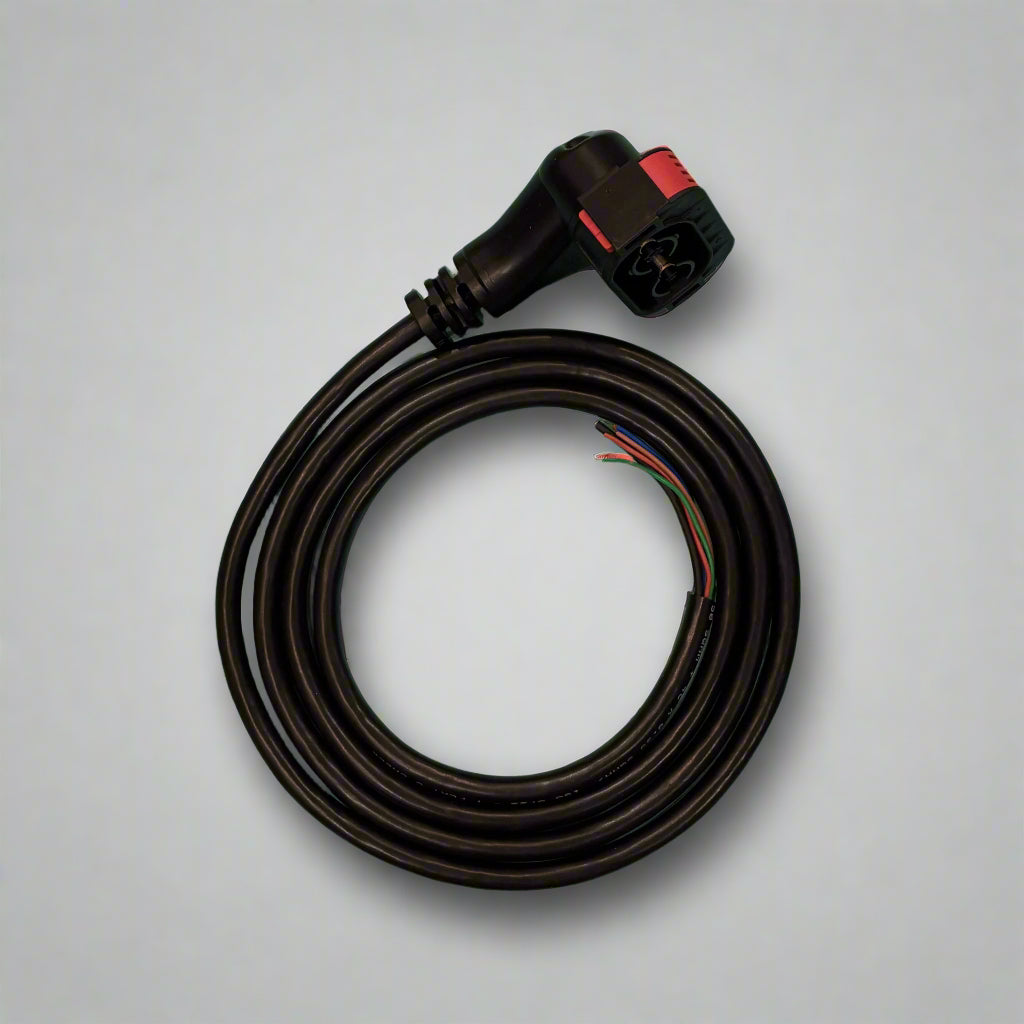

This is a premium replacement charging cable featuring the Amphenol 2+4 Male connector, the standard interface for modern high-speed electric scooters like the Ampere Magnus EX, Zeal EX and others. Engineered with full CAN-Bus capability (6-Wire), this cable ensures critical data exchange between the charger and the vehicle's BMS.
Detailed B2B Specifications
Product Overview
A vital spare part for EV service centers, this cable assembly restores the charging function for the latest generation of "Smart" electric scooters. Unlike older analog systems, these vehicles require a secure digital "handshake" before charging begins. This Amphenol cable provides that certified connection, combining high-current power delivery with interference-free data transmission.
Resale & Service Advantages
- New-Gen Fleet Ready: Targets the growing market of Ampere "Magnus" and "Zeal" series owners who cannot use older 3-pin or Chagori chargers.
- Smart Charging Logic: Fully wired for CAN communication, preventing common "BMS Error" or "Charger Disconnected" faults on the dashboard.
- Robust Connector: The Amphenol housing is designed for higher mating cycles than standard plugs, reducing the likelihood of loose connections over time.
- Universal 4ft Reach: Standard length suitable for both home chargers and workshop bench testing.
Technical Specifications (Key Data)
| Specification | Detail | Installer/Retailer Benefit |
| Connector Interface | Amphenol 2 + 4 Male | Distinct rectangular/oval housing with a secure latch mechanism. |
| Pin Configuration | 2 Power + 4 Signal |
2 Large Pins: Charging Current. 4 Small Pins: CAN Data & Pilot. |
| Communication | CAN-Bus Enabled | Essential for "Smart BMS" handshake and battery health monitoring. |
| Length | 4.0 Feet (~1.2 Meters) | Optimal length for external charger repair. |
| Material | High-Grade Copper | Low resistance ensures efficient energy transfer without heating. |
Platform Compatibility
Direct OEM-Interface Replacement for:
- Ampere: Magnus EX, Zeal EX (2023+ Models).5
- Battre: Select high-speed models using Amphenol ports.
- Kinetic Green: Select premium models with CAN communication.
- Note: Always visually match the connector shape (Amphenol vs. Chagori) before installation.
Functional Architecture (6-Wire Amphenol Logic)
This cable uses a dedicated 6-wire loom to manage the complex charging process:
| Wire Function | Critical Purpose | System Benefit |
| Power Pins (2x Large) | Energy Transfer | Carries the main DC charging current to the battery pack. |
| CAN-H / CAN-L | Data Exchange | Enables the charger to read Battery SOC% and cut off power at 100%. |
| Wake / Pilot | Safety Interlock | Ensures the vehicle is immobilized and ready to accept charge. |
Professional Note:

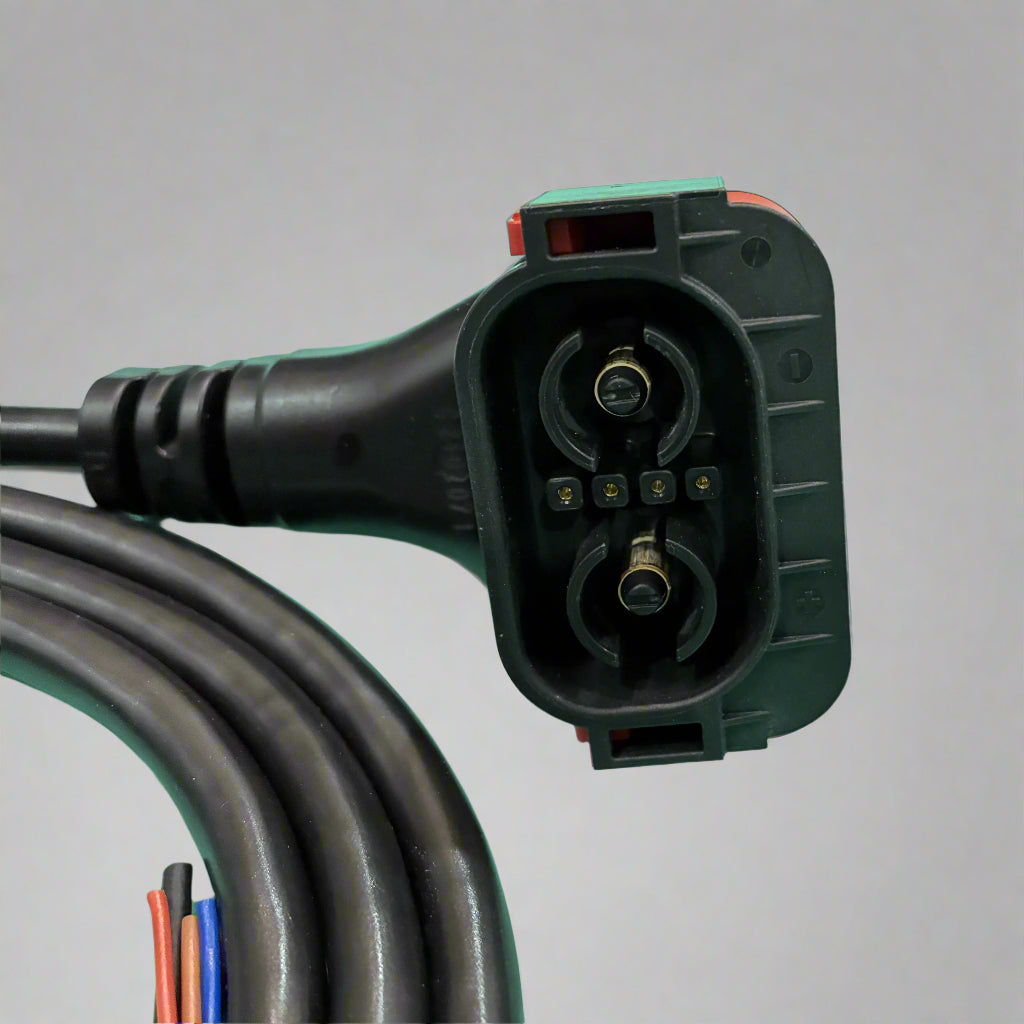

Identification Tip: This connector is easily identified by its unique "2+4" pin layout inside a single housing (2 large pins flanked by 4 smaller pins). It is physically incompatible with round Chagori connectors. Stocking this part is essential for servicing the newest wave of Ampere EVs entering the post-warranty period.
